العلامة التجارية
Brannan
عائلة منتجات صناعية

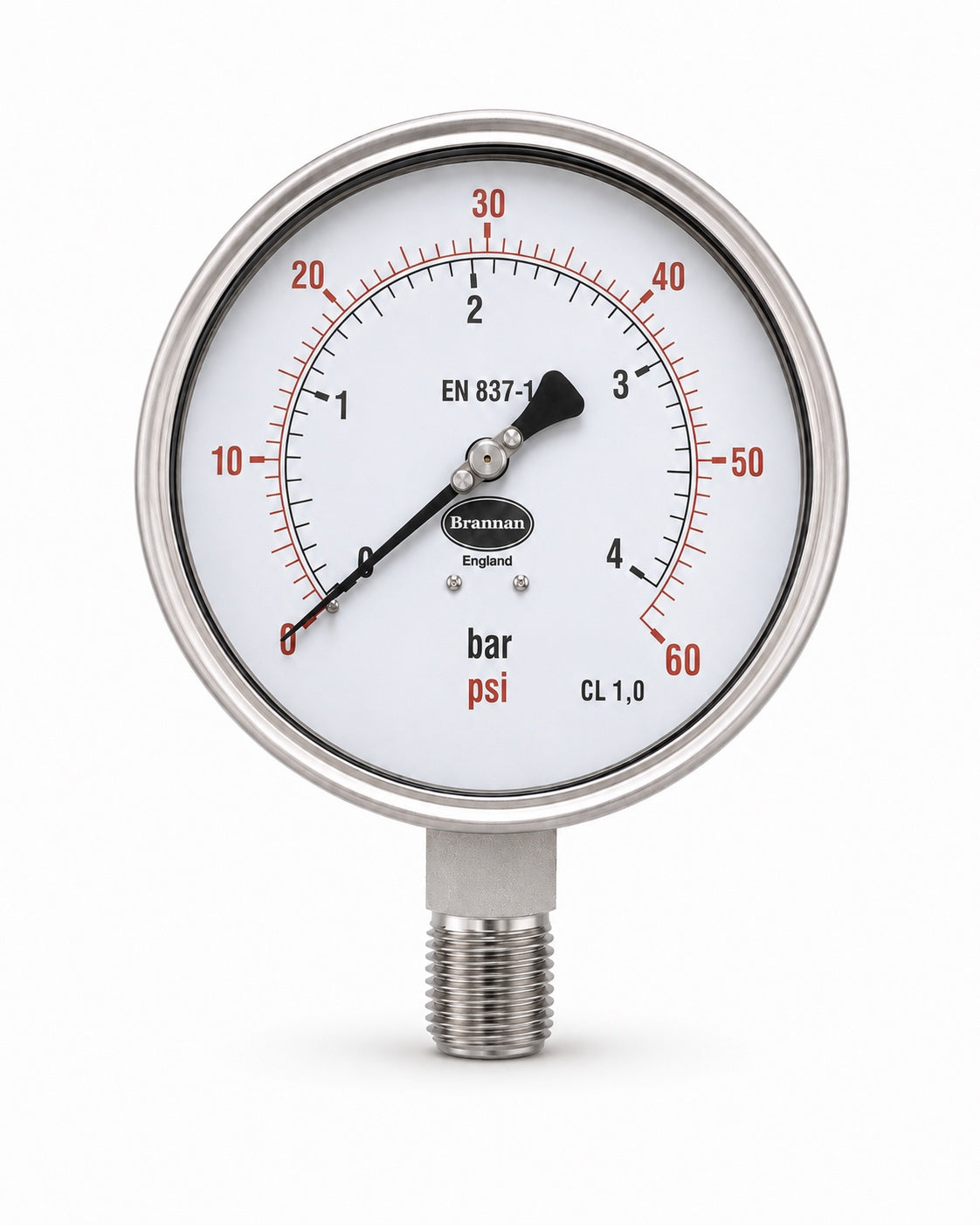

150mm Stainless Steel Fillable Pressure Gauge
يبدأ من
747.50
هل تحتاج مساعدة فنية؟
أرسل التفاصيل لمساعدتك في اختيار الموديل.
تواصل مع ESBT
This stainless steel pressure gauge is designed for use in harsh and corrosive environments across industries including chemical, oil and gas, and hydraulics. It features welded construction, IP 67 ingress protection, and is available as a dry unit or with silicone, glycerine, or halocarbon filling.
Features
- Stainless steel 316L/Monel wetted parts
- 1% accuracy (0.5% optional)
- Connection and case welded
- Ingress protection IP 67
- Silicone, glycerine or halocarbon filling available
- Wide choice of pressure ranges
- For harsh and corrosive environments and pressure media
- Range of associated accessories available
- Brannan quality and accuracy
Applications
- Chemical and petrochemicals
- Heating, ventilation, air-conditioning
- Food and beverage industry
- Machine and apparatus construction
- Pumps, compressors, hydraulic presses
- High humidity installations
- Oil and gas
- Pulp and paper industry
- Pneumatics
- Hydraulics
- Outdoor installations
Specifications
| Design | BS EN 837 / ASME B40.100 |
|---|---|
| Safety category | S1 (blow-out device gauge) (63mm: 0 - no bow-out device) |
| Case | Stainless steel 304 (316 available on request) |
| Connection orientation | Bottom, lower back or centre back |
| Connection material | Stainless steel 316L welded to case (optional Monel, Hastelloy-C276 or duplex stainless steel) |
| Bezel | Stainless steel 304 bayonet bezel |
| Pointer | 63mm: black aluminium, others: black aluminium micro adjustable |
| Measuring principle | Bourdon tube stainless steel 316L (optional Monel, Hastelloy-C276 or duplex stainless steel) |
| Movement | Stainless steel 304 |
| Window | Tempered safety glass (laminated safety glass optional) |
| Dial diameters | 63mm (2.5”), 100mm (4”), 115mm (4.5”) & 150mm (6”) |
| Ranges | -1 to 24 bar & -15 to 350 psi through to 0 to 2500 bar & 0 to 36000 psi |
| Thread size | 1/8”, 1/4”, 3/8” & 1/2” BSP/NPT/BSPT (others available on request) |
| Accuracy class | 63mm: 1.6%, 100mm, 115mm & 150mm: 1.0% (0.5% optional) |
| Filling | Dry, glycerine, silicone or halocarbon |
| Working pressure | Steady: 75% full scale range, fluctuating: 60% full scale range, short time: full scale range |
| Operating temperature | Ambient: -40 to +60°C (dry, silicone filled or halocarbon filled), -7 to +60°C (glycerine filled). Medium: -40 to +200°C (dry), -10 to +100°C (silicone filled or halocarbon filled), -7 to +60°C (glycerine filled) |
| Storage temperature | -40 to +60°C |
| Protection | IP 67 |
| Temperature effect | When temperature of the pressure element deviates from reference temperature of 20°C the maximum additional error is +/-0.4 per 10°C of the span rising and falling |
اختيار سريع ودقيق
الموديلات والمواصفات
ابحث أو صفِّ حسب مدى الضغط والتركيب والتوصيل، ثم أضف الموديل مباشرة إلى السلة.
15
موديل ظاهر
| Pressure Range | Dial and Connection | SKU | السعر | المخزون | الكمية | إجراء الشراء |
|---|---|---|---|---|---|---|
| -30-0inHg / -1-0 bar | 150mm Bottom NPT |
PG.BR150.001.1.2.ST
|
828.00 | غير متوفر | — | |
| 0-15 psi/ 0-1 bar | 150mm Bottom NPT |
PG.BR150.009.1.2.ST
|
747.50 | غير متوفر | — | |
| 0-60 psi/ 0-4 bar | 150mm Bottom NPT |
PG.BR150.013.1.2.ST
|
747.50 | متوفر |
|
|
| 0-100 psi / 0-7 bar | 150mm Bottom NPT |
PG.BR150.015.1.2.ST
|
747.50 | غير متوفر | — | |
| 0-150 psi/ 0-10 bar | 150mm Bottom NPT |
PG.BR150.016.1.2.ST
|
747.50 | متوفر |
|
|
| 0-250 psi / 0-17 bar | 150mm Bottom NPT |
PG.BR150.018.1.2.ST
|
747.50 | متوفر |
|
|
| 0-300 psi/ 0-20 bar | 150mm Bottom NPT |
PG.BR150.019.1.2.ST
|
747.50 | متوفر |
|
|
| 0-350 psi/ 0-25 bar | 150mm Bottom NPT |
PG.BR150.020.1.2.ST
|
747.50 | متوفر |
|
|
| 0-6000 psi/ 0-400 bar | 150mm Bottom NPT |
PG.BR150.023.1.2.ST
|
747.50 | متوفر |
|
|
| 0-6000 psi/ 0-400 bar | 150mm Back NPT |
PG.BR150.030.2.2.ST
|
1,092.50 | متوفر |
|
|
| 0-10,000 psi/ 0-700 bar | 150mm Bottom NPT |
PG.BR150.031.1.2.ST
|
828.00 | متوفر |
|
|
| 0-10,000 psi/ 0-700 bar | 150mm Back NPT |
PG.BR150.031.2.2.ST
|
1,207.50 | متوفر |
|
|
| 0-15,000 psi / 0-1,000 bar | 150mm Bottom NPT |
PG.BR150.032.1.2.ST
|
828.00 | متوفر |
|
|
| 0-4000psi/ 0-270 bar | 150mm Bottom NPT |
PG.BR150.040.1.2.ST
|
782.00 | متوفر |
|
|
| 0-2000 psi/ 0-140 bar | 150mm Bottom NPT |
PG.BR150.043.1.2.ST
|
747.50 | متوفر |
|
|
