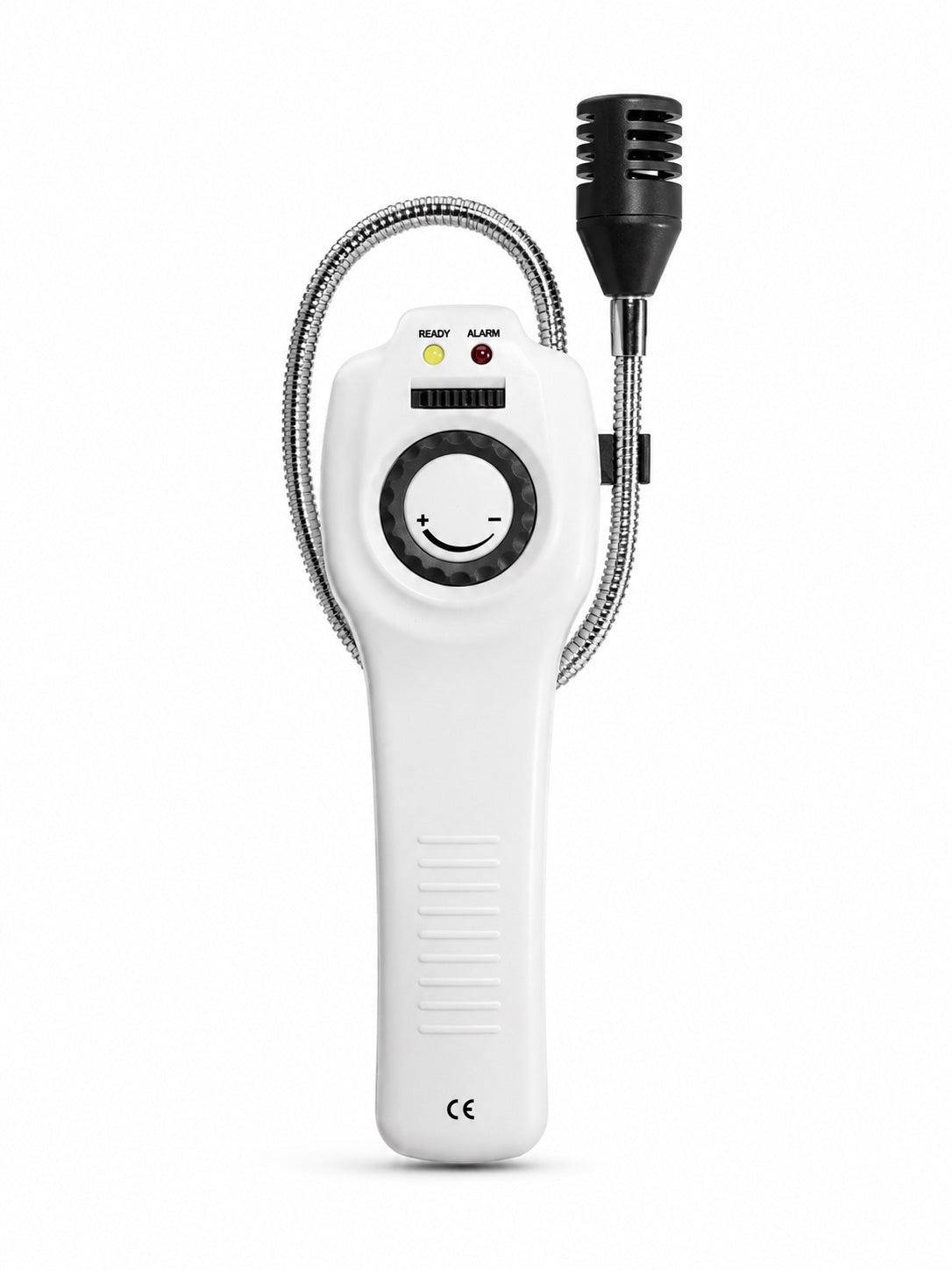

GD-3300 Combustible Gas Leak Detector

السعر 747.50

متاح للطلب 1 / 1

اختيار الموديل من الجدول أدناه

هل تحتاج مساعدة فنية؟ أرسل التفاصيل لمساعدتك في اختيار الموديل.

The GD-3300 combustible gas leak detector is equipped with a 16-inch gooseneck probe for identifying leaks in confined spaces. It provides both audible and visual indicators to pinpoint gas sources, while the adjustable tic rate function allows for operation in contaminated environments. The device is designed for one-hand usage and features a high-sensitivity semiconductor sensor for fast response times.

Features

Easily operate the Combustible Gas Leak Detector with one hand to detect presence of combustible gases.
Audible and visual indicators help pinpoint leak source.
Adjustable “tic” rate helps eliminate background gas concentration in contaminated environments.
Higher Sensitivity
Adjustable tick rate to locate leaks quickly and easily
Visual leak detection by LED indicators
Precision sensor detects even the smallest leaks
Fast response of less than two seconds to 40% LEL
Includes earphone Jack
16” gooseneck

Applications

Natural Gas
Propane
Butane
Methane
Acetone
Alcohol
Ammonia
Steam
Carbon Monoxide (not to quantify)
Gasoline
Jet Fuel
Hydrogen Sulfide
Smoke
Industrial Solvents
Lacquer Thinner
Naphtha

Specifications

Sensitivity	50 ppm methane
Sensor Type	Low power semiconductor
Warm Up Time	Approx. 60 seconds
Response Time	Less than 2sec. (up to 40% LEL)
Duty Cycle	Continuous
Probe Length	16”
Power Supply	3”C” cell batteries
Battery Life	8 hours continuous use, typical
Alarm	Visible & Audible at 10% LEL for Methane. Can be calibrated for other concentrations or gases.
Warranty	1 year
Temperature operating range	32 to 120°F
Humidity operating range	10 to 90% RH (non condensing)
