العلامة التجارية
Italmanometri
عائلة منتجات صناعية

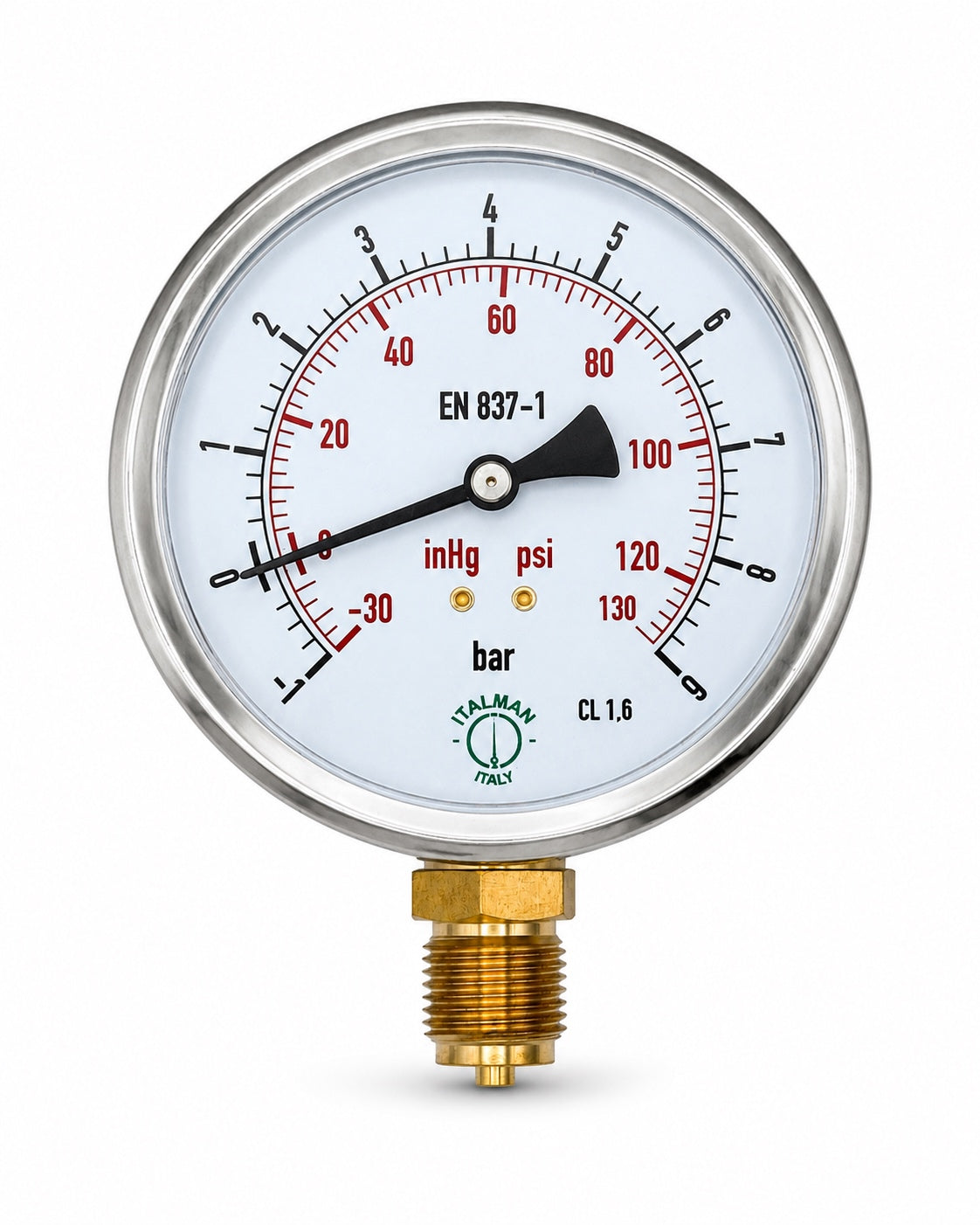

Liquid Fillable Bourdon Tube Pressure Gauge 4 Inch
يبدأ من
299.00
متاح للطلب
12 / 12
اختيار الموديل
من الجدول أدناه
هل تحتاج مساعدة فنية؟
أرسل التفاصيل لمساعدتك في اختيار الموديل.
تواصل مع ESBT
This liquid fillable pressure gauge features a stainless steel case with a crimped ring design. It is suitable for use in light industrial applications where damping is required for gases and liquids compatible with brass measuring systems.
Features
- Liquid fillable gauge
- Crimped ring
Applications
- Light industrial applications requiring damping.
- Suitable for gases and liquids that do not attack the brass measuring system.
Specifications
| Nominal sizes | 4” |
|---|---|
| Connection | BSP 1/2” for 4” |
| Accuracy class | 4”:KL 1.6 |
| Pressure ranges | 0 to 0.6/1/1.6/2.5/4/6/10/16/25/40/60/100/160/250/400 bar |
| Vacuum range | -1 to 0 bar |
| Compound pressure | -1 to 0.6/1.5/3/5/9/15/24 bar |
| Operating Temperature - Ambient | -40°C to 60°C |
| Operating Temperature - Medium | 60°C maximum |
| Case material | 304 stainless steel case and crimped ring |
| Window material | polycarbonate |
| Wetted parts | copper alloy bourdon tube and brass connection |
| Movement material | brass |
| Standard filling | glycerin |
اختيار سريع ودقيق
الموديلات والمواصفات
ابحث أو صفِّ حسب مدى الضغط والتركيب والتوصيل، ثم أضف الموديل مباشرة إلى السلة.
12
موديل ظاهر
| Pressure Range | Connection Type | SKU | السعر | المخزون | الكمية | إجراء الشراء |
|---|---|---|---|---|---|---|
| -30-0-150psi/ -1-0-10 bar | Bottom BSP |
PG.IT100.005.1.1.GL
|
316.25 | متوفر |
|
|
| 0-15 psi/ 0-1 bar | Bottom BSP |
PG.IT100.009.1.1.GL
|
299.00 | متوفر |
|
|
| 0-100 psi / 0-7 bar | Bottom BSP |
PG.IT100.015.1.1.GL
|
299.00 | متوفر |
|
|
| 0-150 psi/ 0-10 bar | Bottom BSP |
PG.IT100.016.1.1.GL
|
299.00 | متوفر |
|
|
| 0-150 psi/ 0-10 bar | Back BSP |
PG.IT100.016.2.1.GLF
|
483.00 | متوفر |
|
|
| 0-250 psi / 0-17 bar | Bottom BSP |
PG.IT100.018.1.1.GL
|
299.00 | متوفر |
|
|
| 0-300 psi/ 0-20 bar | Bottom BSP |
PG.IT100.019.1.1.GL
|
299.00 | متوفر |
|
|
| 0-350 psi/ 0-25 bar | Bottom BSP |
PG.IT100.020.1.1.GL
|
299.00 | متوفر |
|
|
| 0-600 psi/ 0-40 bar | Bottom BSP |
PG.IT100.023.1.1.GL
|
299.00 | متوفر |
|
|
| 0-600 psi/ 0-40 bar | Back BSP |
PG.IT100.023.2.1.GLF
|
483.00 | متوفر |
|
|
| 0-1,000 psi / 0-70 bar | Bottom BSP |
PG.IT100.025.1.1.GL
|
316.25 | متوفر |
|
|
| 0-1500 psi / 0-100 bar | Bottom BSP |
PG.IT100.026.1.1.GL
|
316.25 | متوفر |
|
|
