العلامة التجارية
Tecsis
عائلة منتجات صناعية

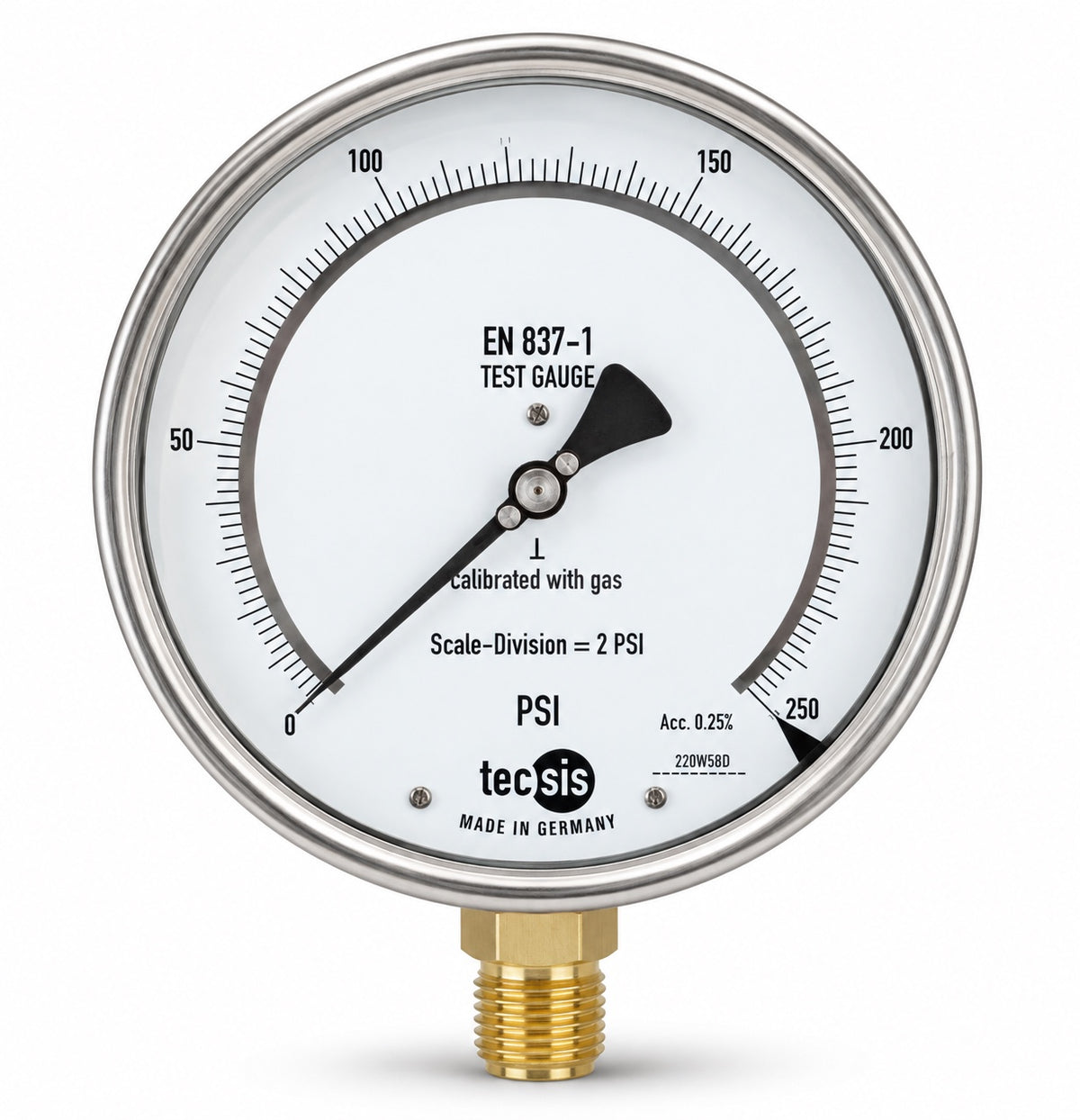

P1881 Precision Test Gauge with Mirrored Scale
يبدأ من
2,472.50
هل تحتاج مساعدة فنية؟
أرسل التفاصيل لمساعدتك في اختيار الموديل.
تواصل مع ESBT
The P1881 precision test gauge features a high-grade Bourdon tube measuring element and a mirrored scale for exact readings. It is designed for laboratory and research and development applications, suitable for non-aggressive gaseous and liquid media. The unit includes a knife-edge pointer with micro-adjustment and offers 1.3-fold overload capacity.
Features
- Exact readings
- 1.3-fold overload capacity
- Mirrored scale
- Pointer with microadjustment
Applications
- Precision monitoring in processing plants;
- Control and adjustment of pressure gauges,
- Test equipment
Specifications
| Model | P1881 |
|---|---|
| Nominal size | 160 mm |
| Accuracy class | 0.25 % (ASME B40.1-1991) |
| Ranges | 0 ... 0.6 bar up to 0 ... 1600 bar; negative or positive / negative and positive gauge pressure |
| Application - Static pressure | up to full scale value |
| Application - Dynamic pressure | up to 0.9 times full scale value |
| Overload capacity | 1.3 times max. rating shortly |
| Case | Stainless steel 1.4301, Pressure relief opening at back of the case |
| Bezel | Stainless steel 1.4301 |
| Window | Glass lens |
| Dial | Aluminium white, scale and imprint black, mirrored |
| Pointer | Knife-edge pointer, alu., black, with micro-adjustment |
| Movement | Brass |
| Measuring element | <100 bar Copper alloy / Bourdon tube / soft soldered; ³100 bar Stainless steel / helical tube / brazed; ³1000 bar Stainless steel / helical tube / welded |
| Connection - Location | bottom |
| Connection - Thread | G 1/2 B or 1/2-14 NPT |
| Temperatures - Media | Tmin. -20°C , Tmax. 60°C |
| Temperatures - Ambient | Tmin. -40°C , Tmax. 60°C |
| Temperature drift | 0.3 % / 10K if deviation from normal temperature 20°C |
| Protection class | IP 54 according EN 60 529/IEC 259 |
| Calibration medium | £ 25 bar : gas , >25 bar : oil |
| Orifice | ø0.4 ; ø0.8 |
| Weight ca. | 1.3 kg |
اختيار سريع ودقيق
الموديلات والمواصفات
ابحث أو صفِّ حسب مدى الضغط والتركيب والتوصيل، ثم أضف الموديل مباشرة إلى السلة.
12
موديل ظاهر
| Pressure Range | Product Code | SKU | السعر | المخزون | الكمية | إجراء الشراء |
|---|---|---|---|---|---|---|
| 0-15 psi | Codes |
PG.LR150.009.1.2.TST
|
2,472.50 | متوفر |
|
|
| 0-60 psi | Codes |
PG.LR150.013.1.2.TST
|
2,472.50 | متوفر |
|
|
| 0-100 psi | Codes |
PG.LR150.015.1.TST
|
2,472.50 | متوفر |
|
|
| 0-150 psi | Codes |
PG.LR150.016.1.2.TST
|
2,587.50 | متوفر |
|
|
| 0-10 bar | Codes |
PG.LR150.016A.1.TST
|
2,587.50 | غير متوفر | — | |
| 0-250 psi | Codes |
PG.LR150.018.1.TST
|
2,587.50 | متوفر |
|
|
| 0-300 psi | Codes |
PG.LR150.019.1.2.TST
|
2,587.50 | غير متوفر | — | |
| 0-600 psi | Codes |
PG.LR150.023.1.2.TST
|
2,587.50 | غير متوفر | — | |
| 0-800 psi | Codes |
PG.LR150.024.1.TST
|
2,587.50 | متوفر |
|
|
| 0-2500 psi | Codes |
PG.LR150.043.1.TST
|
2,587.50 | متوفر |
|
|
| 0-4 bar | Codes |
PG.LR150.044.1.2.TST
|
2,587.50 | متوفر |
|
|
| 0-60 Kpa | Codes |
PG.LR150.054.1.TST
|
2,472.50 | متوفر |
|
|
