Brand
Italmanometri
Industrial product family

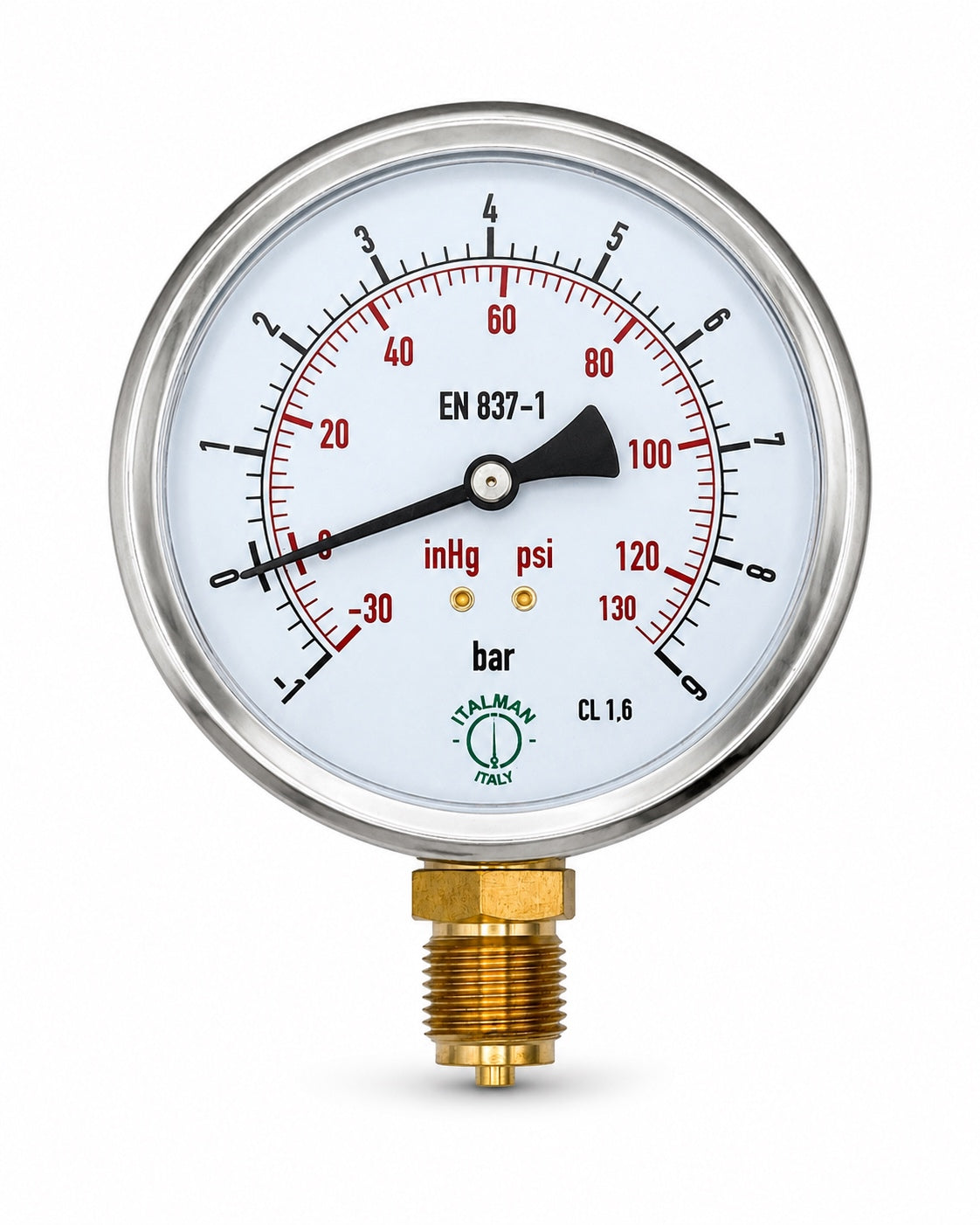

4" Liquid Fillable Pressure Gauge with Crimped Ring
Starting at
299.00
Need technical guidance?
Send details for model help.
Contact ESBT
This liquid fillable pressure gauge features a stainless steel case with a crimped ring. It is designed for light industrial applications requiring vibration damping. The instrument is compatible with gases and liquids that do not attack the brass measuring system.
Features
- Liquid fillable gauge
- Crimped ring
Applications
- Light industrial applications requiring damping.
- Suitable for gases and liquids that do not attack the brass measuring system.
Specifications
| Nominal sizes | 4” |
|---|---|
| Connection | BSP 1/2” for 4” |
| Accuracy class | 4”:KL 1.6 |
| Pressure ranges | 0 to 0.6/1/1.6/2.5/4/6/10/16/25/40/60/100/160/250/400 bar |
| Vacuum range | -1 to 0 bar |
| Compound pressure | -1 to 0.6/1.5/3/5/9/15/24 bar |
| Operating Temperature - Ambient | -40°C to 60°C |
| Operating Temperature - Medium | 60°C maximum |
| Case material | 304 stainless steel case and crimped ring |
| Window material | polycarbonate |
| Wetted parts | copper alloy bourdon tube and brass connection |
| Movement material | brass |
| Standard filling | glycerin |
Fast, precise selection
Models & specifications
Search or filter by pressure range, mounting, and connection, then add the exact model directly to your cart.
12
models shown
| Pressure Range | Connection Type | SKU | Price | Stock | Quantity | Purchase action |
|---|---|---|---|---|---|---|

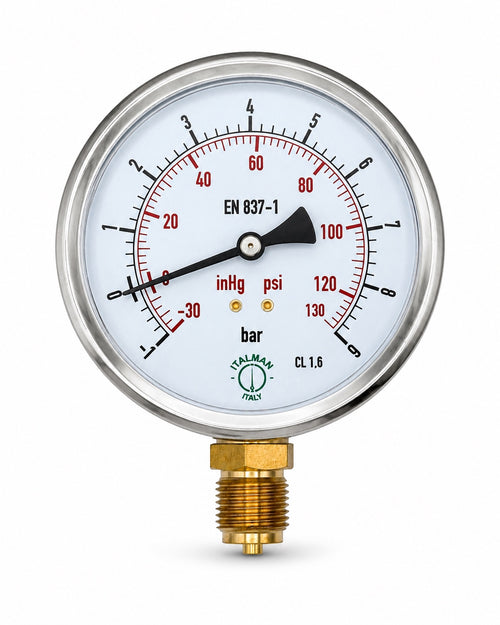

| -30-0-150psi/ -1-0-10 bar | Bottom BSP |
PG.IT100.005.1.1.GL
|
316.25 | In stock |
|
|

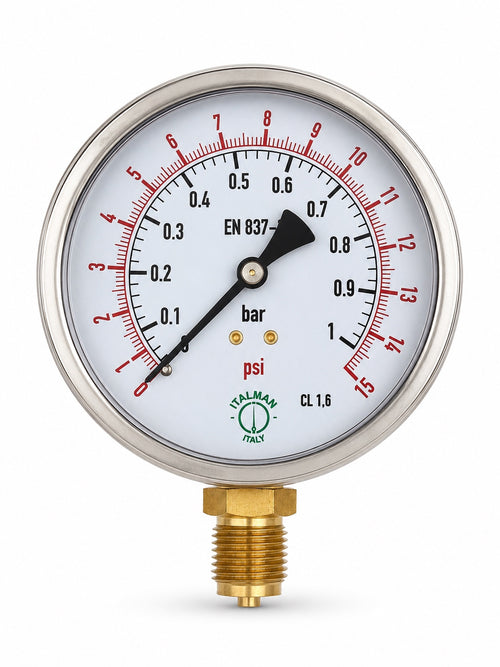

| 0-15 psi/ 0-1 bar | Bottom BSP |
PG.IT100.009.1.1.GL
|
299.00 | In stock |
|
|
| 0-100 psi / 0-7 bar | Bottom BSP |
PG.IT100.015.1.1.GL
|
299.00 | In stock |
|
|
| 0-150 psi/ 0-10 bar | Bottom BSP |
PG.IT100.016.1.1.GL
|
299.00 | In stock |
|
|
| 0-150 psi/ 0-10 bar | Back BSP |
PG.IT100.016.2.1.GLF
|
483.00 | In stock |
|
|
| 0-250 psi / 0-17 bar | Bottom BSP |
PG.IT100.018.1.1.GL
|
299.00 | In stock |
|
|
| 0-300 psi/ 0-20 bar | Bottom BSP |
PG.IT100.019.1.1.GL
|
299.00 | In stock |
|
|
| 0-350 psi/ 0-25 bar | Bottom BSP |
PG.IT100.020.1.1.GL
|
299.00 | In stock |
|
|
| 0-600 psi/ 0-40 bar | Bottom BSP |
PG.IT100.023.1.1.GL
|
299.00 | In stock |
|
|
| 0-600 psi/ 0-40 bar | Back BSP |
PG.IT100.023.2.1.GLF
|
483.00 | In stock |
|
|
| 0-1,000 psi / 0-70 bar | Bottom BSP |
PG.IT100.025.1.1.GL
|
316.25 | In stock |
|
|
| 0-1500 psi / 0-100 bar | Bottom BSP |
PG.IT100.026.1.1.GL
|
316.25 | In stock |
|
|
