Brand Italmanometri
Industrial product family

100mm Liquid-Filled Industrial Pressure Gauge

Starting at 322.00
Available to order 9 / 9
Model selection See table below
Choose a model
Need technical guidance? Send details for model help.
Contact ESBT

DIN bayonet case • copper-alloy measuring system • vibration resistant

Features

  • DIN bayonet case
  • Copper-alloy measuring system
  • Vibration resistant

Applications

  • Hydraulic systems
  • Pumps
  • Presses
  • Compressors
  • Pneumatic systems
  • Diesel engines
  • Machinery exposed to pulsation or vibration

Specifications

Nominal dial size 63 mm, 100 mm
Case / bezel Matte stainless steel 304 case with removable DIN-type stainless-steel bayonet bezel
Filling Glycerin or silicone, selected according to application
Accuracy 63 mm: ±1.6% of full scale; 100 mm and larger: ±1.0% of full scale
Measuring range Vacuum and compound; pressure ranges from 0…0.6 bar up to 0…1,000 bar
Pressure element Copper alloy standard
Process connection Brass standard
Movement Brass; heavy-duty mechanism specified for 100 mm and larger
Connection sizes 1/4" or 1/2"
Thread forms BSP or NPT
Mounting Bottom or back entry
Window 63 mm: instrument glass or polycarbonate; 100 mm and larger: safety glass preferred
Dial / pointer Aluminum dial and aluminum adjustable pointer; micro-adjustable pointer preferred for 100 mm and larger
Ambient temperature −20 to +60 °C
Medium temperature +60 °C maximum consolidated rating
Fast, precise selection

Models & specifications

Search or filter by pressure range, mounting, and connection, then add the exact model directly to your cart.

9 models shown
Pressure Range Connection Type and Mount SKU Price Stock Quantity

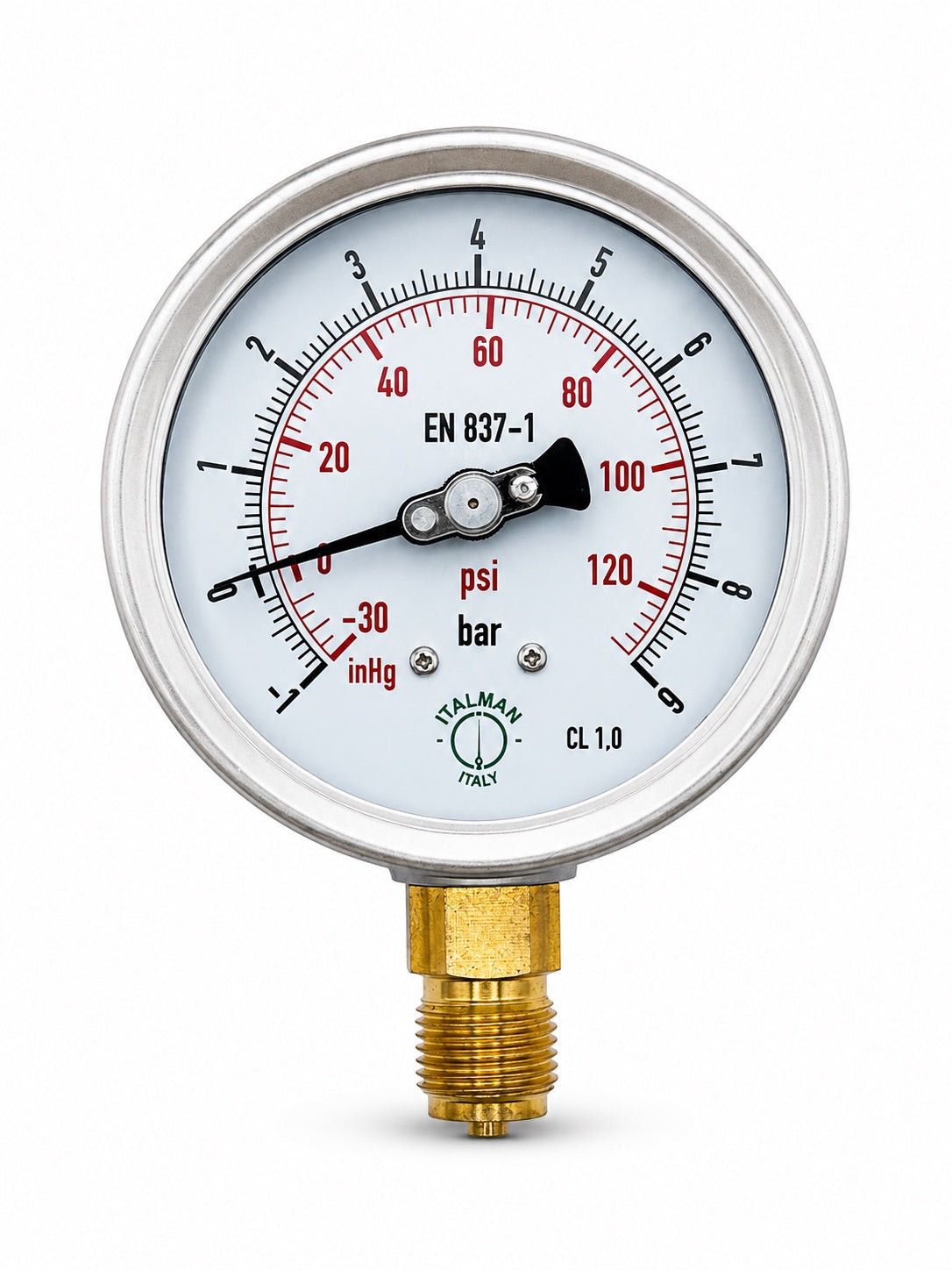

-30-0-150psi/ -1-0-10 bar Bottom BSP PG.IT100.005.1.1.GLO 333.50 In stock

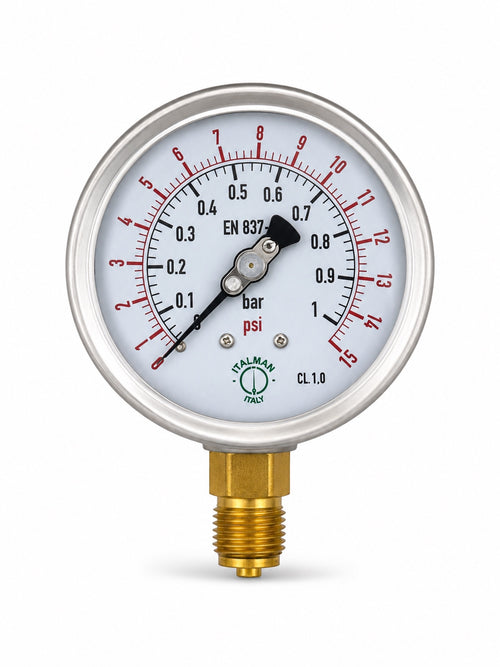

0-15 psi/ 0-1 bar Bottom BSP PG.IT100.009.1.1.GLO 322.00 In stock
0-150 psi/ 0-10 bar Bottom BSP PG.IT100.016.1.1.GLO 322.00 In stock
0-150 psi/ 0-10 bar Bottom NPT PG.IT100.016.1.2.GLO 322.00 In stock
0-250 psi / 0-17 bar Bottom BSP PG.IT100.018.1.1.GLO 322.00 In stock
0-400 psi/ 0-28 bar Bottom NPT PG.IT100.021.1.2.GLO 322.00 In stock
0-600 psi/ 0-40 bar Bottom NPT PG.IT100.023.1.2.GLO 333.50 In stock
0-1,000 psi / 0-70 bar Bottom BSP PG.IT100.025.1.1.GLO 345.00 In stock
0-1,000 psi / 0-70 bar Bottom NPT PG.IT100.025.1.2.GLO 345.00 In stock
