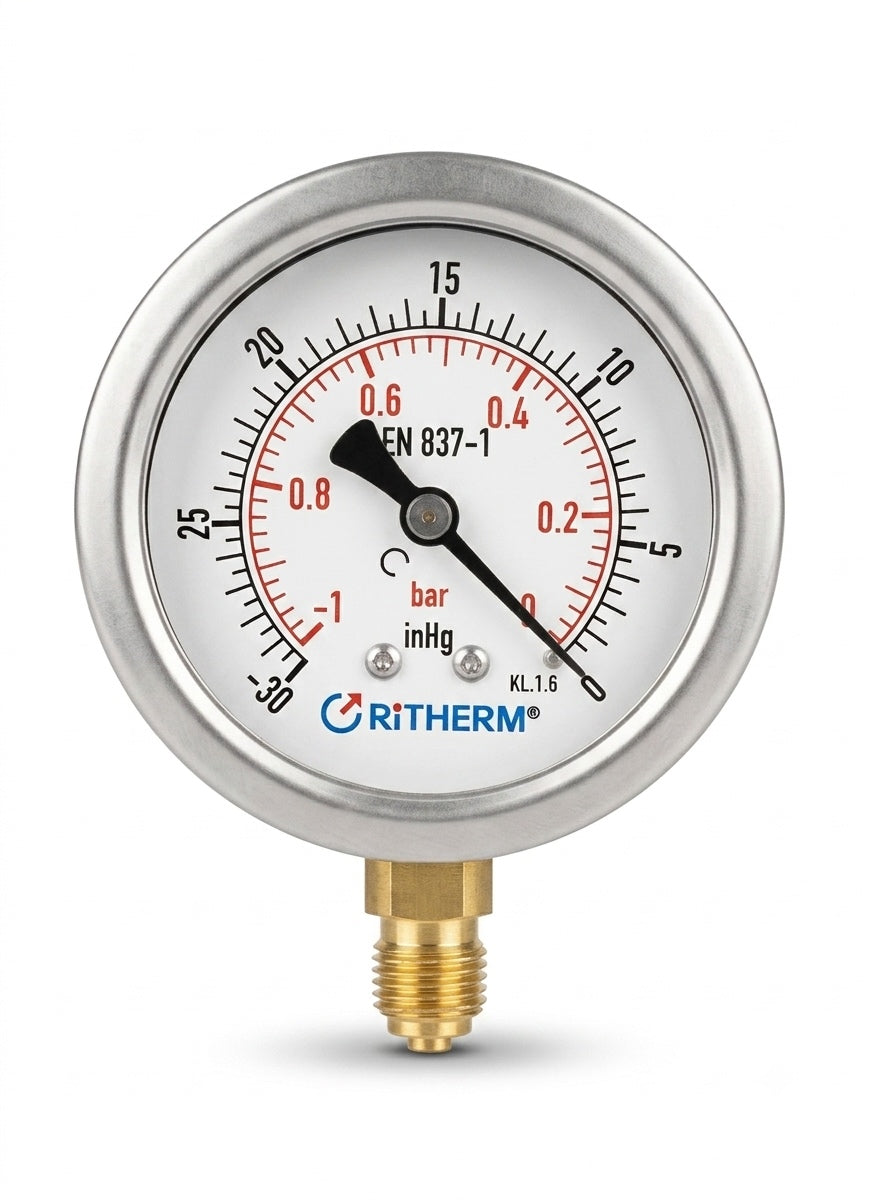

63mm Liquid-Filled Pressure Gauge, Stainless Steel Case
Starting at
103.50
Need technical guidance?
Send details for model help.
Contact ESBT
This 63mm pressure gauge features a stainless steel case and a crimped ring design. It is suitable for measuring the pressure of non-corrosive, non-explosive, and non-crystallizing gases or liquids. The gauge is specifically designed for environments with intense vibration or machinery that remains operational for extended periods.
Features
- Stainless steel case
- Crimped ring
- Liquid fillable
- Optional NPT, BSPT or other process connection
- Optional Restrictor (RS)
- Optional Double dial range or other dial ranges
- Optional Silicone oil filling, refrigeration scale
- Optional Adjustable pointer for 100mm
Applications
- Measuring pressure of gas or liquid which is non-corrosive, explosive and no crystallization, precipitation. The most notable character is they can test pressure properly even installed on violent vibration machine or equipment.
- Applicable to working environment with intense vibration, machinery and equipment operational for a long time.
Specifications
| Nominal size | 63mm |
|---|---|
| Design | EN 837-1 |
| Accuracy class - 63mm | 1.6 |
| Scale range - Pressure | -1 to 1000bar |
| Scale range - Vacuum | -1bar to 0 |
| Scale range - Compound | -1 to 24bar |
| Operating temperature - Ambient | -40+70 deg C |
| Operating temperature - Medium | +70 deg C |
| Protection class | IP 65 |
| Material - Case | Stainless steel |
| Material - Bezel ring | Crimped ring w/groove on case |
| Material - Window | Polycarbonate |
| Material - Standard filling | Glycerin |
| Material - Dial plate | Aluminum, pointer stop, white background. Black marking for single scale, black and red for dual scale. |
| Material - Pointer | Black aluminum |
| Material - Bourdon tube | Copper alloy |
| Material - Bourdon tube (<100bar) | C shape |
| Material - Bourdon tube (>=100bar) | Helical type |
| Material - Connection | Brass |
| Material - Movement | Brass |
| Connection - 63mm | 1/4"BSP |
Fast, precise selection
Models & specifications
Search or filter by pressure range, mounting, and connection, then add the exact model directly to your cart.
41
models shown
| Pressure Range | Connection Type | SKU | Price | Stock | Quantity | Purchase action |
|---|---|---|---|---|---|---|
| -30-0inHg / -1-0 bar | Bottom BSP |
PG.RI63.001.1.1.GL
|
115.00 | In stock |
|
|
| -30-0inHg / -1-0 bar | Bottom NPT |
PG.RI63.001.1.2.GL
|
115.00 | Out of stock | — | |
| -30-0inHg / -1-0 bar | Back BSP |
PG.RI63.001.2.1.GL
|
138.00 | In stock |
|
|
| -30-0inHg / -1-0 bar | Back NPT |
PG.RI63.001.2.2.GL
|
138.00 | In stock |
|
|
| 0-15 psi/ 0-1 bar | Bottom NPT |
PG.RI63.009.1.2.GL
|
103.50 | In stock |
|
|
| 0-30 psi/ 0-2 bar | Bottom BSP |
PG.RI63.011.1.1.GL
|
115.00 | In stock |
|
|
| 0-30 psi/ 0-2 bar | Bottom NPT |
PG.RI63.011.1.2.GL
|
115.00 | In stock |
|
|
| 0-30 psi/ 0-2 bar | Back NPT |
PG.RI63.011.2.2.GL
|
126.50 | Out of stock | — | |
| 0-60 psi/ 0-4 bar | Bottom NPT |
PG.RI63.013.1.2.GL
|
103.50 | In stock |
|
|
| 0-60 psi/ 0-4 bar | Back NPT |
PG.RI63.013.2.2.GL
|
115.00 | In stock |
|
|
| 0-100 psi / 0-7 bar | Bottom BSP |
PG.RI63.015.1.1.GL
|
103.50 | In stock |
|
|
| 0-100 psi / 0-7 bar | Bottom NPT |
PG.RI63.015.1.2.GL
|
103.50 | In stock |
|
|
| 0-100 psi / 0-7 bar | Back NPT |
PG.RI63.015.2.2.GL
|
115.00 | In stock |
|
|
| 0-150 psi/ 0-10 bar | Bottom BSP |
PG.RI63.016.1.1.GL
|
103.50 | In stock |
|
|
| 0-150 psi/ 0-10 bar | Bottom NPT |
PG.RI63.016.1.2.GL
|
103.50 | In stock |
|
|
| 0-150 psi/ 0-10 bar | Back NPT |
PG.RI63.016.2.2.GL
|
115.00 | In stock |
|
|
| 0-250 psi / 0-17 bar | Bottom BSP |
PG.RI63.018.1.1.GL
|
103.50 | In stock |
|
|
| 0-250 psi / 0-17 bar | Bottom NPT |
PG.RI63.018.1.2.GL
|
103.50 | In stock |
|
|
| 0-250 psi / 0-17 bar | Back BSP |
PG.RI63.018.2.1.GL
|
115.00 | In stock |
|
|
| 0-250 psi / 0-17 bar | Back NPT |
PG.RI63.018.2.2.GL
|
115.00 | In stock |
|
|
| 0-300 psi/ 0-20 bar | Bottom BSP |
PG.RI63.019.1.1.GL
|
103.50 | In stock |
|
|
| 0-300 psi/ 0-20 bar | Bottom NPT |
PG.RI63.019.1.2.GL
|
103.50 | In stock |
|
|
| 0-300 psi/ 0-20 bar | Back NPT |
PG.RI63.019.2.2.GL
|
115.00 | In stock |
|
|
| 0-350 psi/ 0-25 bar | Bottom NPT |
PG.RI63.020.1.2.GL
|
103.50 | In stock |
|
|
| 0-350 psi/ 0-25 bar | Back NPT |
PG.RI63.020.2.2.GL
|
115.00 | In stock |
|
|
| 0-400 psi/ 0-28 bar | Back NPT |
PG.RI63.021.2.2.GL
|
126.50 | In stock |
|
|
| 0-600 psi/ 0-40 bar | Bottom BSP |
PG.RI63.023.1.1.GL
|
103.50 | In stock |
|
|
| 0-600 psi/ 0-40 bar | Bottom NPT |
PG.RI63.023.1.2.GL
|
115.00 | Out of stock | — | |
| 0-1,000 psi / 0-70 bar | Bottom BSP |
PG.RI63.025.1.1.GL
|
115.00 | In stock |
|
|
| 0-1,000 psi / 0-70 bar | Bottom NPT |
PG.RI63.025.1.2.GL
|
115.00 | In stock |
|
|
| 0-1,000 psi / 0-70 bar | Back NPT |
PG.RI63.025.2.2.GL
|
115.00 | In stock |
|
|
| 0-2500 psi. / 0-170 bar | Bottom BSP |
PG.RI63.027.1.1.GL
|
115.00 | In stock |
|
|
| 0-3500 psi/ 0-250 bar | Bottom NPT |
PG.RI63.028.1.2.GL
|
115.00 | In stock |
|
|
| 0-5000 psi/ 0-340 bar | Back BSP |
PG.RI63.029.2.1.GL
|
138.00 | In stock |
|
|
| 0-5000 psi/ 0-340 bar | Back NPT |
PG.RI63.029.2.2.GL
|
138.00 | In stock |
|
|
| 0-6000 psi/ 0-400 bar | Bottom BSP |
PG.RI63.030.1.1.GL
|
126.50 | In stock |
|
|
| 0-6000 psi/ 0-400 bar | Bottom NPT |
PG.RI63.030.1.2.GL
|
126.50 | In stock |
|
|
| 0-6000 psi/ 0-400 bar | Back NPT |
PG.RI63.030.2.2.GL
|
138.00 | In stock |
|
|
| 0-10,000 psi/ 0-700 bar | Bottom NPT |
PG.RI63.031.1.2.GL
|
149.50 | In stock |
|
|
| -30-0-300psi/ -1-0-21 bar | Bottom NPT |
PG.RI63.034.1.2.GL
|
138.00 | In stock |
|
|
| -1-0-3 bar | Bottom NPT |
PG.RI63.037.1.2.GL
|
126.50 | In stock |
|
|
