Brand
XMC
Industrial product family

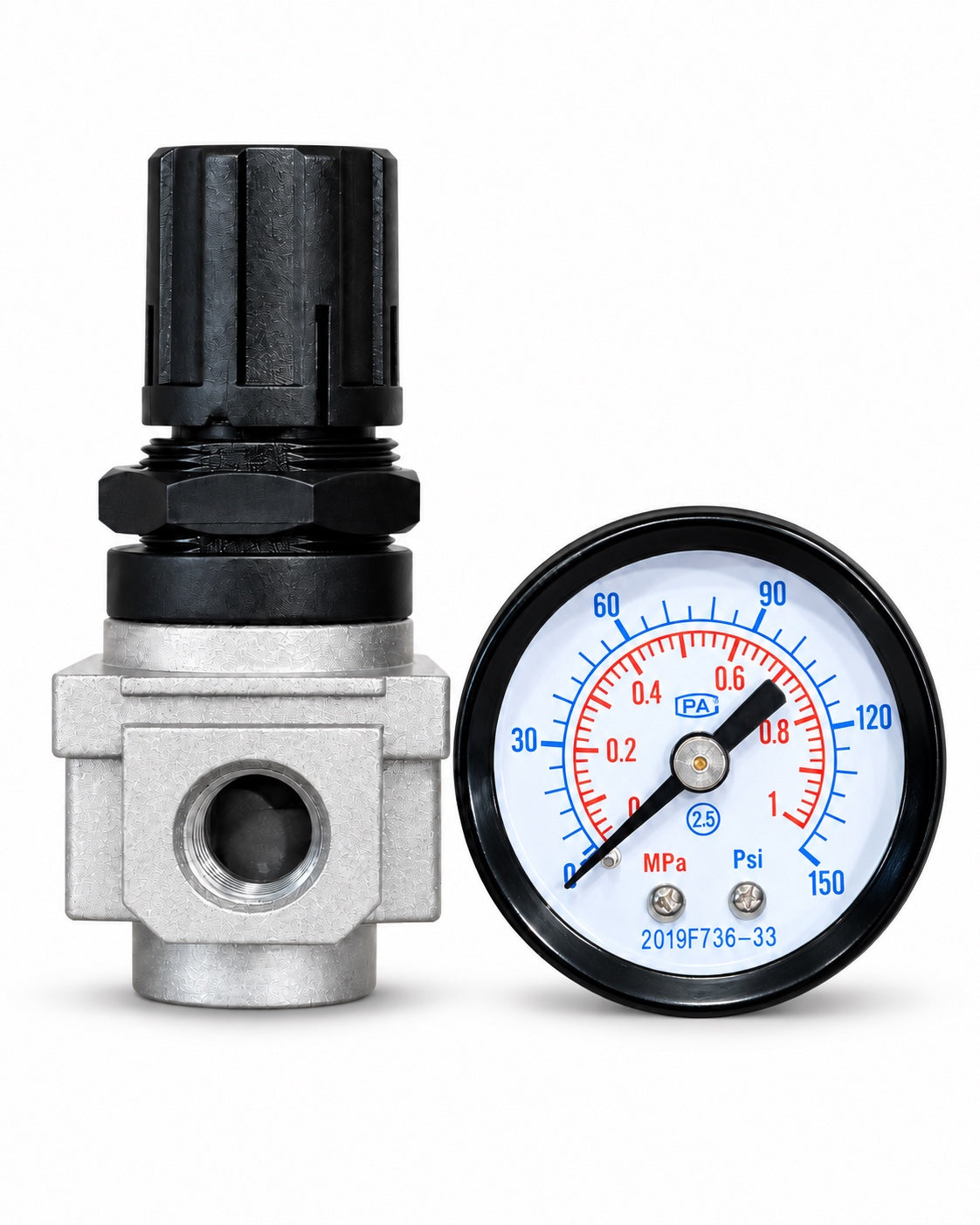

AR-Single-Element Air Regulator with Overflow Valve
Starting at
109.25
Need technical guidance?
Send details for model help.
Contact ESBT
The AR-Single-Element air regulator features an integrated overflow valve for pneumatic control applications. The unit is constructed with a polycarbonate container and is compatible with ISOVG32 turbine oil.
Features
- With overflow valve type
Specifications
| Ensured Pressure Resistance | 1.5MPa (15kgf/cm2) |
|---|---|
| Maximum Working Pressure | 1.0MPa (10kgf/cm2) |
| Ambient and Fluid Temperature | 5~60℃ |
| Pressure Regulating Range (AR1000) | 0.05~0.7MPa(0.5~7kgf/cm2) |
| Pressure Regulating Range (AR2000-5000) | 0.05~0.85MPa(0.5~8.5kgf/cm2) |
| Filter Precision | 25μm (5, 50μm is available for optional) |
| Recommended Oil Use | Turbine No.1 Oil ISOVG32 |
| Container Material | Polycarbonate |
| Protective Cover | None |
| Valve Type | With Overflow |
Fast, precise selection
Models & specifications
Search or filter by pressure range, mounting, and connection, then add the exact model directly to your cart.
7
models shown
| Port Size | Reducer Model | SKU | Price | Stock | Quantity | Purchase action |
|---|---|---|---|---|---|---|
| 1/4" | AR1500 |
RI.AR1500.REDUCER
|
109.25 | In stock |
|
|
| 1/4" | AR2000-2 |
RI.AR2000-2.REDUCER
|
143.75 | In stock |
|
|
| 1/2" | AR3000-2 |
RI.AR3000-2.REDUCER
|
207.00 | In stock |
|
|
| 3/4" | AR4000-4 |
RI.AR4000-4.REDUCER
|
184.00 | Out of stock | — | |
| 1/2" | AR4000-6 |
RI.AR4000-6.REDUCER
|
207.00 | In stock |
|
|
| 1" | AR5000-10 |
RI.AR5000-10.REDUCER
|
373.75 | In stock |
|
|
| 3/4" | AR5000-6 |
RI.AR5000-6.REDUCER
|
414.00 | Out of stock | — |
