Brand
Italmanometri
Industrial product family

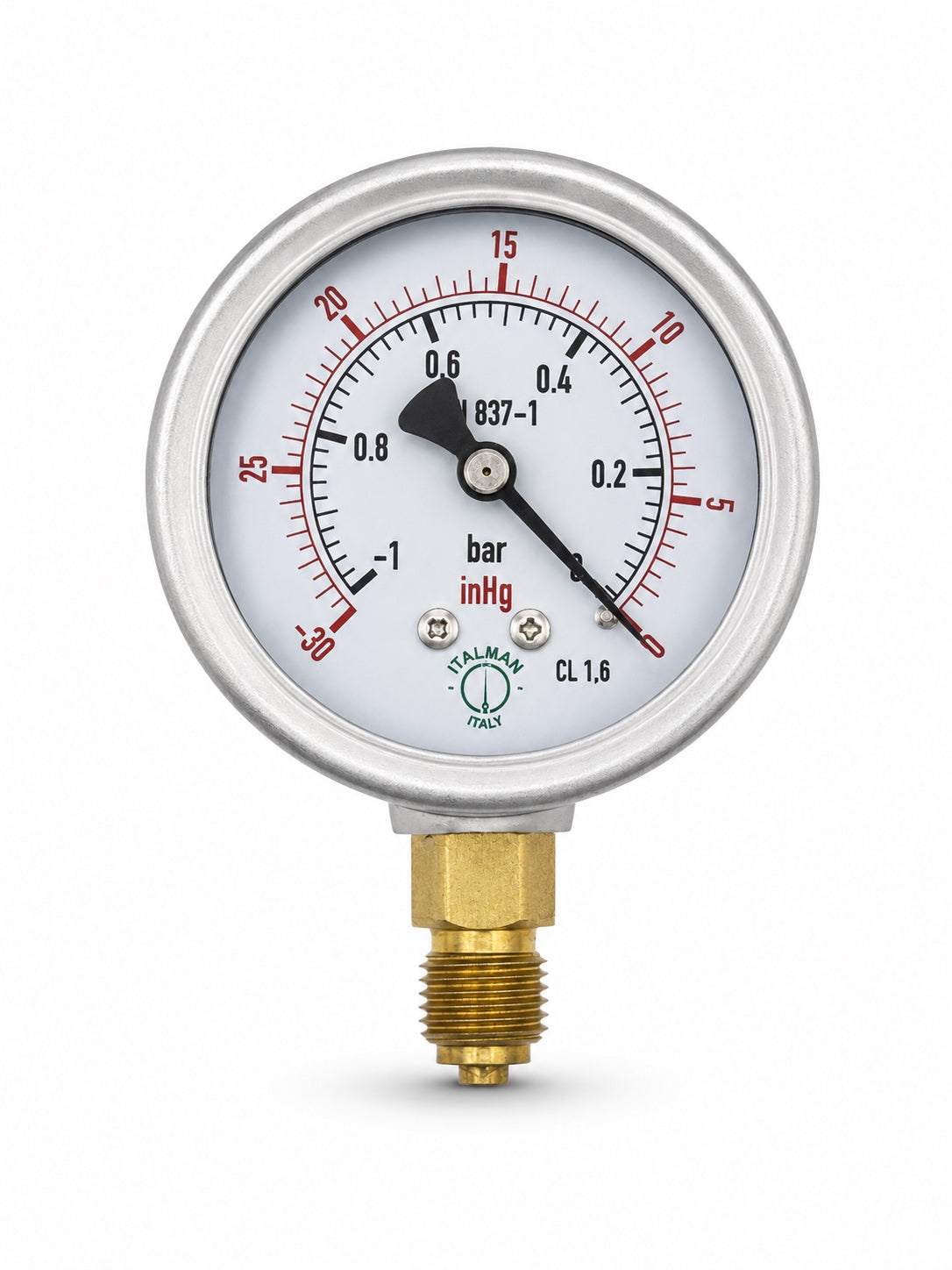

Liquid-Filled Industrial Pressure Gauge 63 mm
Starting at
178.25
Need technical guidance?
Send details for model help.
Contact ESBT
DIN bayonet case • copper-alloy measuring system • vibration resistant
Features
- DIN bayonet case
- Copper-alloy measuring system
- Vibration resistant
Specifications
| Nominal dial size | 63 mm |
|---|---|
| Case / bezel | Matte stainless steel 304 case with removable DIN-type stainless-steel bayonet bezel |
| Filling | Glycerin or silicone, selected according to application |
| Accuracy | 63 mm: ±1.6% of full scale; 100 mm and larger: ±1.0% of full scale |
| Measuring range | Vacuum and compound; pressure ranges from 0…0.6 bar up to 0…1,000 bar |
| Pressure element | Copper alloy standard; stainless steel optional subject to range and configuration |
| Process connection | Brass standard; stainless steel optional |
| Movement | Brass; heavy-duty mechanism specified for 100 mm and larger |
| Connection sizes | 1/4" or 1/2" |
| Thread forms | BSPP (G/PF), BSPT (PT/ZG) or NPT |
| Mounting | Bottom or back entry; flange or U-clamp panel mounting available |
| Window | 63 mm: instrument glass or polycarbonate; 100 mm and larger: safety glass preferred |
| Dial / pointer | Aluminum dial and aluminum adjustable pointer; micro-adjustable pointer preferred for 100 mm and larger |
| Ambient temperature | −20 to +60 °C |
| Medium temperature | +60 °C maximum consolidated rating |
| Pressure loading limits - 63 mm - Steady pressure | 75% FS |
| Pressure loading limits - 63 mm - Fluctuating pressure | 65% FS |
| Pressure loading limits - 63 mm - Short-time overpressure | 100% FS |
| Pressure loading limits - 100 mm and larger - Steady pressure | 100% FS |
| Pressure loading limits - 100 mm and larger - Fluctuating pressure | 85% FS |
| Pressure loading limits - 100 mm and larger - Short-time overpressure | 130% FS |
Applications
- Hydraulic systems
- Pumps
- Presses
- Compressors
- Pneumatic systems
- Diesel engines
- Machinery exposed to pulsation or vibration
Fast, precise selection
Models & specifications
Search or filter by pressure range, mounting, and connection, then add the exact model directly to your cart.
31
models shown
| Pressure Range | Mounting | Thread | SKU | Price | Stock | Quantity | Purchase action |
|---|---|---|---|---|---|---|---|
| -30–0 inHg / -1–0 bar | Bottom | BSP |
PG.IT63.001.1.1.GL
|
178.25 | In stock |
|
|
| -1–0–3 bar | Bottom | BSP |
PG.IT63.037.1.1.GL
|
178.25 | In stock |
|
|
| -30–0–150 psi / -1–0–10 bar | Bottom | BSP |
PG.IT63.005.1.1.GL
|
178.25 | In stock |
|
|
| 0–15 psi / 0–1 bar | Bottom | BSP |
PG.IT63.009.1.1.GL
|
178.25 | In stock |
|
|
| 0–60 psi / 0–4 bar | Bottom | BSP |
PG.IT63.013.1.1.GL
|
178.25 | In stock |
|
|
| 0–100 psi / 0–7 bar | Bottom | BSP |
PG.IT63.015.1.1.GL
|
178.25 | In stock |
|
|
| 0–100 psi / 0–7 bar | Bottom | NPT |
PG.IT63.015.1.2.GL
|
178.25 | In stock |
|
|
| 0–150 psi / 0–10 bar | Bottom | BSP |
PG.IT63.016.1.1.GL
|
178.25 | In stock |
|
|
| 0–150 psi / 0–10 bar | Bottom | NPT |
PG.IT63.016.1.2.GL
|
178.25 | In stock |
|
|
| 0–150 psi / 0–10 bar | Back | BSP |
PG.IT63.016.2.1.GL
|
189.75 | In stock |
|
|
| 0–150 psi / 0–10 bar | Back | NPT |
PG.IT63.016.2.2.GL
|
189.75 | In stock |
|
|
| 0–250 psi / 0–17 bar | Bottom | BSP |
PG.IT63.018.1.1.GL
|
178.25 | In stock |
|
|
| 0–250 psi / 0–17 bar | Back | BSP |
PG.IT63.018.2.1.GL
|
189.75 | In stock |
|
|
| 0–300 psi / 0–20 bar | Bottom | BSP |
PG.IT63.019.1.1.GL
|
178.25 | In stock |
|
|
| 0–300 psi / 0–20 bar | Back | BSP |
PG.IT63.019.2.1.GL
|
189.75 | In stock |
|
|
| 0–350 psi / 0–25 bar | Bottom | BSP |
PG.IT63.020.1.1.GL
|
178.25 | In stock |
|
|
| 0–350 psi / 0–25 bar | Back | BSP |
PG.IT63.020.2.1.GL
|
189.75 | In stock |
|
|
| 0–400 psi / 0–28 bar | Bottom | BSP |
PG.IT63.021.1.1.GL
|
178.25 | In stock |
|
|
| 0–400 psi / 0–28 bar | Back | BSP |
PG.IT63.021.2.1.GL
|
189.75 | In stock |
|
|
| 0–1,000 psi / 0–70 bar | Bottom | BSP |
PG.IT63.025.1.1.GL
|
178.25 | In stock |
|
|
| 0–1,000 psi / 0–70 bar | Back | BSP |
PG.IT63.025.2.1.GL
|
189.75 | In stock |
|
|
| 0–1,500 psi / 0–100 bar | Bottom | BSP |
PG.IT63.026.1.1.GL
|
189.75 | In stock |
|
|
| 0–1,500 psi / 0–100 bar | Back | BSP |
PG.IT63.026.2.1.GL
|
189.75 | In stock |
|
|
| 0–2,000 psi / 0–140 bar | Bottom | BSP |
PG.IT63.043.1.1.GL
|
189.75 | In stock |
|
|
| 0–2,500 psi / 0–170 bar | Back | BSP |
PG.IT63.027.2.1.GL
|
189.75 | In stock |
|
|
| 0–3,000 psi / 0–200 bar | Bottom | BSP |
PG.IT63.039.1.1.GL
|
189.75 | In stock |
|
|
| 0–3,500 psi / 0–250 bar | Bottom | BSP |
PG.IT63.028.1.1.GL
|
189.75 | In stock |
|
|
| 0–3,500 psi / 0–250 bar | Bottom | NPT |
PG.IT63.028.1.2.GL
|
189.75 | In stock |
|
|
| 0–3,500 psi / 0–250 bar | Back | BSP |
PG.IT63.028.2.1.GL
|
189.75 | In stock |
|
|
| 0–10,000 psi / 0–700 bar | Back | BSP |
PG.IT63.031.2.1.GL
|
201.25 | In stock |
|
|
| 0–15,000 psi / 0–1,000 bar | Bottom | NPT |
PG.IT63.032.1.2.GL
|
195.50 | In stock |
|
|
