Brand
ESBTINST
Industrial product family

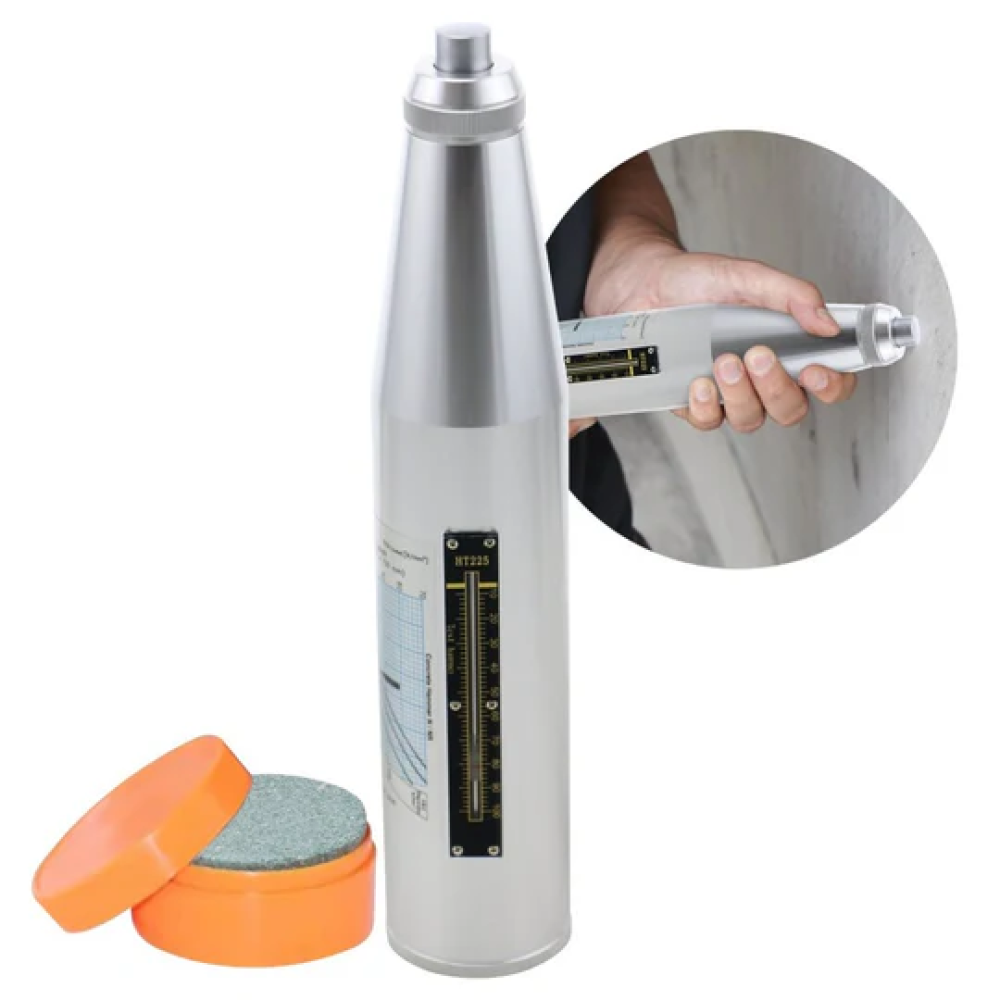

Measuring Instrument - HT-225 DG.Hammer.HT225
Price
2,183.85
Available to order
1 / 1
Model selection
See table below
Need technical guidance?
Send details for model help.
Contact ESBT
Concrete rebound tester is used to test the compressive strength of concrete, and it is the most widely used non-destructive testing instrument for concrete compressive strength. It has certain strength and strong fatigue resistance. Suitable instrument for testing buildings, highway and bridges.
Features
- Center rod is made from imported material, high accuracy and durable resistance
- The shell is made form high Aluminum in order to perfect protect instrument from damage and extend use life
- Spherical zero adjustment screw: Springback is more smooth..
- Cap/Spring: It has good mechanical properties and good stability.
- Push button: With one click, it can be retractable.
- Scale: The scale is clear and the pointer is smooth.
Specifications
| Measuring range | 10~70MPa |
|---|---|
| Impact energy | 2.207J（0.225Kgf.m) |
| Spring extension | 2.95inch/75mm |
| Static friction of pointer slider | 0.5N~0.8N |
| Radius of spherical tip | 25mm±1mm |
| Average rebound values on steel anvil | 80±2 |
| Material | Stainless Steel |
| Dimension | 60 x 280mm |
| Weight | 1.0kg |
Applications
- testing buildings
- highway and bridges
Included Items
- 1 x Concrete Test Hammer
- 1 x Millstone
- English Instruction Manual
- Carrying Case
- Standard factory packaging
Fast, precise selection
Models & specifications
Search or filter by pressure range, mounting, and connection, then add the exact model directly to your cart.
1
models shown
| SKU | Price | Stock | Quantity | Purchase action |
|---|---|---|---|---|
DG.Hammer.HT225
|
2,183.85 | In stock |
|
|
No matching models
Clear a filter or try a different search term.
