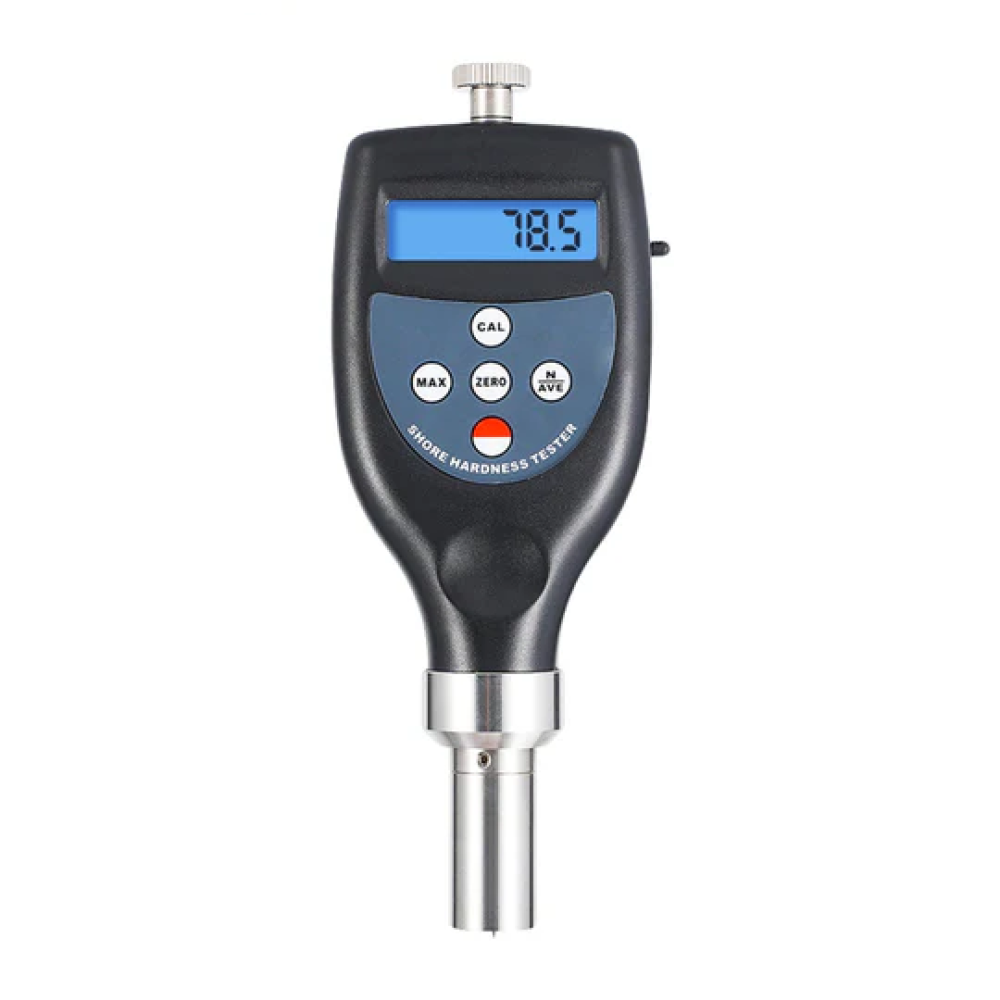

Measuring Instrument - HT-6510D RI.HARDNESS.HT-6510D

Price 4,312.50

Available to order 1 / 1

Model selection See table below

Need technical guidance? Send details for model help.

This pocket size digital testing equipment is fully equipped with an indenting foot of hardened steel rod with a 30° conical point and 0.1 mm radius tip and is capable of producing a value from 0 to 100, with higher values indicating a harder material. The results obtained from this test are a useful measure of relative resistance to indentation of various grades of polymers, elastomers and rubbers.

Features

With INTEGRATED (built-in) PROBE and designed to determine the hardness of Plastics, Formica, Expoxies and Plexiglass
Equipped with wide measuring range and high resolution
Uses Microcomputer LSI circuit and crystal time base to offer high accuracy measurement & fast measuring time.
Uses operation stand capable of applying the specimen to the indentor with sufficient recommended force that allows accurate and repeatable hardness tests to increased stability and maximum repeatability
Delivers ultra accurate reading with no guessing errors
Features instant, bold, easy to read, legibly written results indicating a specific value, with a 0.1 resolution
Use anywhere and suitable for use in the laboratory or in field conditions

Specifications

Test scale	Shore D Hardness
Standards	DIN53505, ASTM D2240, ISO 7619, JIS K7215
Parameters displayed	hardness result, average value, max. value
Measurement range	0-100 H (Shore D)
Microcomputer	Newly developed microcomputer delivers maximum results
Measurement deviation	error<= +/-1
Resolution	0.1 H
Temperature Operating conditions	0 - 50°C
Humidity Operating Conditions	<80%
Display	4 digits, 10mm LCD
Power supply	4 x 1.5V AAA (UM-4) battery
Battery indicator	low battery indicator
Power off	manual or auto after 10 minutes
Dimensions	162mm x 65mm x 38mm
Weight (without batteries)	170g
