Brand
ESBTINST
Industrial product family

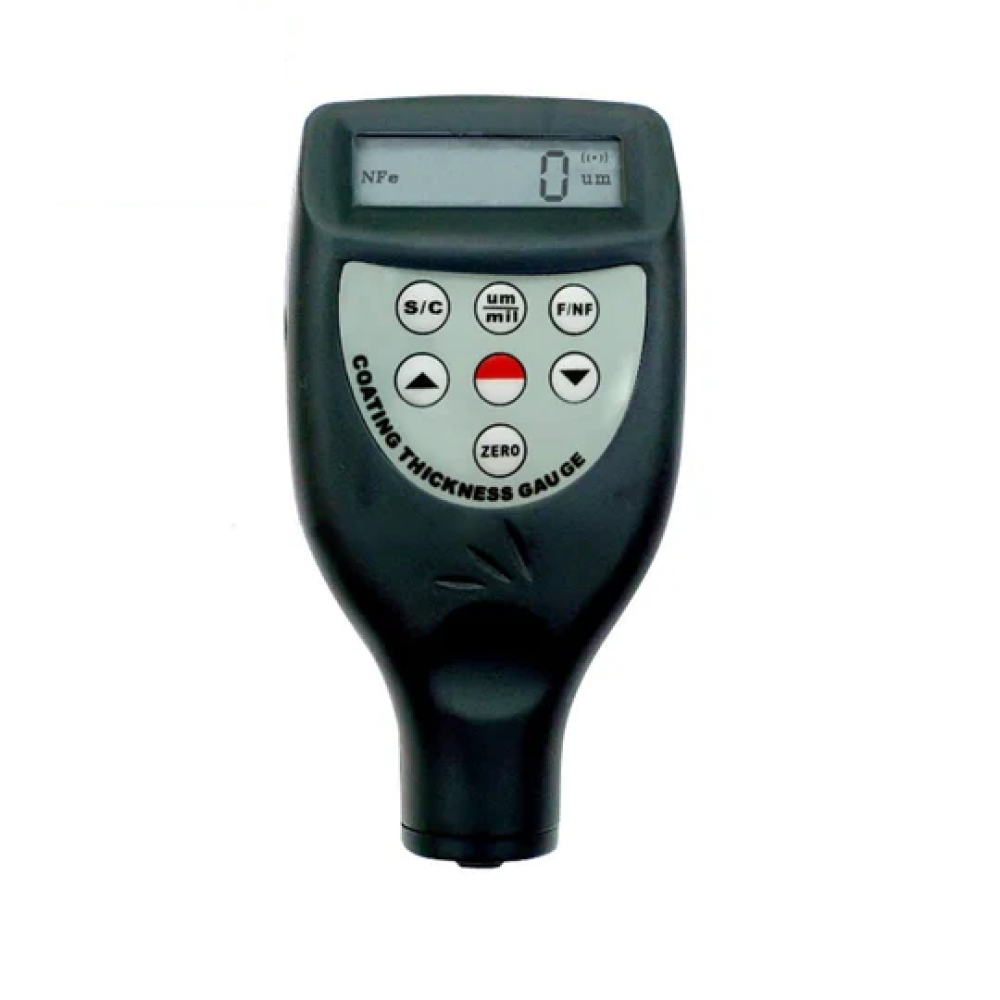

Measuring Instrument - CM-8825FN RI.COAT.CM8825-FN
Price
3,047.50
Need technical guidance?
Send details for model help.
Contact ESBT
Coating thickness meter conquers the difficulties of non-destructive measuring of coating thickness on both magnetic and non-magnetic base. It is the most advanced and top quality rugged meter that uses magnetic induction and eddy current principle to measure thickness of magnetic coating on nonmagnetic base as well as nonmagnetic coating on magnetic base. Lightweight and equipped with BUILT-IN F & NF probes it carries out high-speed and accurate results on either single or continuous measuring mode and covering wide range of 0~1250um or 0~50mil.
Features
- With Built-in F & NF probe for a wireless operation
- Capable to measure magnetic & nonmagnetic materials in high resolution and wide measuring range of 0~1250um or 0~50mil
- Has CE marking, conforms with the essential health and safety requirements set out by the European Directives
- Conforms and passed the standards of international standards including ASTM, DIN, BS and ISO-2178 as well as ISO-2360
- Light weight and provides Single-handed menu navigation
- With automatic substrate recognition
- Provides Single & Continuous measurement mode with Metric/English conversion
- With manual and automatic shut down
- Features instant results that's clearly & legibly shown on an easy-to-read LCD screen and gives exact reading with no guessing or errors
- Durable, long lasting components with a strong &light weight ABS plastic housing assures maintenance free
Specifications
| Probes | Built-in F probe & NF probe |
|---|---|
| Operating Principle | magnetic induction and eddy current(F & NF) |
| Measuring Range | 0~1250um/0~50mil |
| Resolution | 0.1um (0~99.9um) , 1um (over 100um) |
| Accuracy | ±1-3%n or ±2.5um or 0.1mil (which ever is greater) |
| Measuring Area | 6mm |
| Min. Sample Thickness | 0.3mm |
| Modes | Single & Continuous |
| Battery Indicator | low battery indicator |
| Metric/Imperial | convertible |
| Power supply | 4 x 1.5V AAA(UM-4)battery |
| Manual or Auto power off | Yes |
| Operating Conditions | 0~50°C(32°F-104°F) Temperature, <80% Humidity |
| Dimensions | 126 x 65x 27mm |
| weight | 81g (not including battery) |
Applications
- laboratory
- Powder Coating Companies
- Manufacturing Companies
- Paint Suppliers
- Steel and Aluminum Refinishing
- Automobile Dealers
- Auto Auctions
- Body Shops
- Auto Detailers
Included Items
- 1 x Coating Thickness Meter
- 4 x Calibration foils
- Aluminum& Iron substrates
- English User's Manual
- Protective Carrying Case with Shock absorbent contoured rubber inside
Fast, precise selection
Models & specifications
Search or filter by pressure range, mounting, and connection, then add the exact model directly to your cart.
1
models shown
| SKU | Price | Stock | Quantity | Purchase action |
|---|---|---|---|---|
RI.COAT.CM8825-FN
|
3,047.50 | In stock |
|
|
No matching models
Clear a filter or try a different search term.
