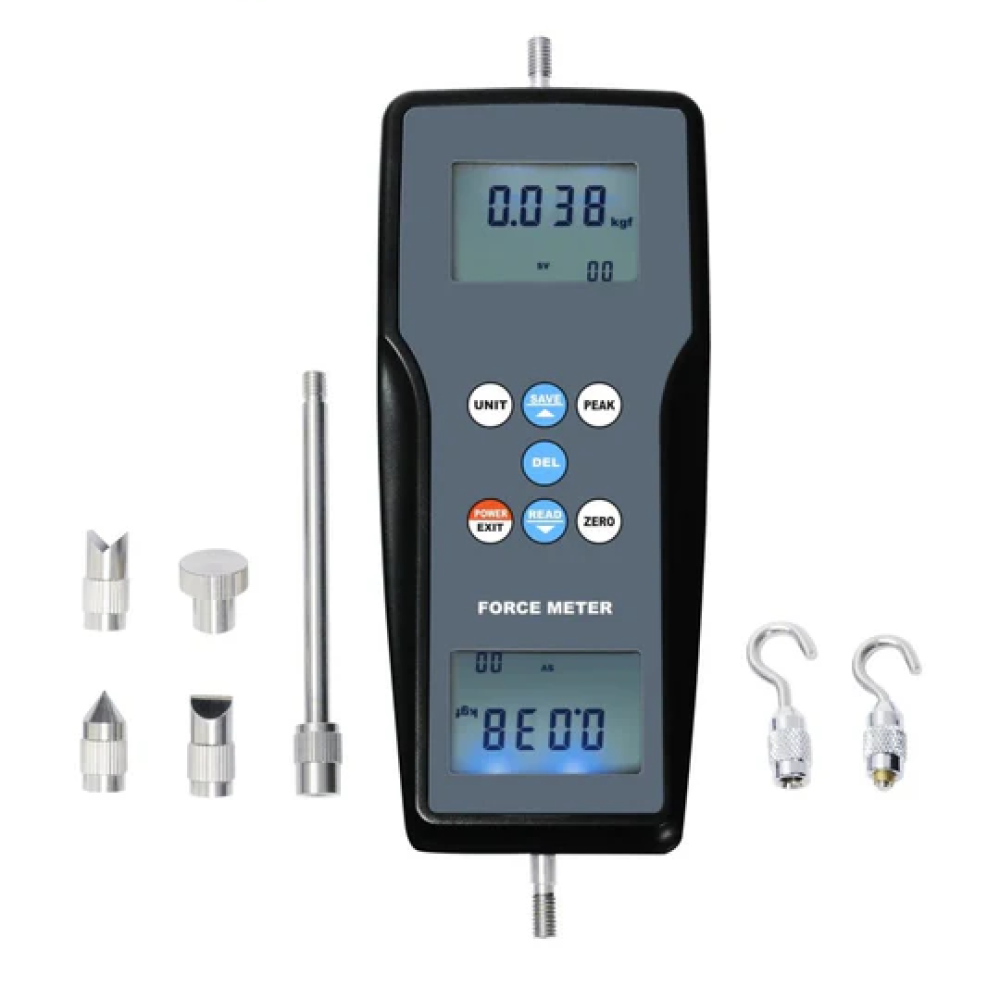

Measuring Instrument - FM-207 DG.Push.Pull.FM207

Price 3,448.85

Available to order 1 / 1

Model selection See table below

Need technical guidance? Send details for model help.

FM-207 Series is a digital force gauge simple and convenient functional instrument for high-accuracy push force and pull force test. It is widely used in electronics, building hardware, textile, auto parts, ignition device such as lighter, fire fighting equipment, pen manufacturing, lock manufacturing, fishing gear, chemical, power machinery, scientific research institutions and other industries.

Features

High accuracy and high resolution
High sampling speed
Efficient instrument for push force and pull force test
Digital display with no guessing or errors
Four (4) measurement units for selection, N, kg, lb, g (for 1k, 2k, 5k versions)
Three (3) measurement units for selection, N, kg, lb (for 10k, 20k, 100k versions)
Peak value hold function
Can memorize up to 99 groups of data
With Blue Backlight
10 minutes auto power off and manual power off
Low battery indicator
Use USB data output to connect with PC (cable and software not included in the set)
Provide Bluetooth data output choice (adapter and software not included in the set)
Available in 10 models with different force range for you to choose

Specifications

Accuracy	±0.2%FS ± 1 Digit
Unit	kgf, gf, N, Lbf
Measurement State	Peak Value Measurement, Real-Time Measurement
Display	2 Reversed 4 Digit LCD
Safe Load	150%FS (Buzzer Alarm Over 110%FS)
Data Output	USB & Bluetooth (Cable, adaptor and software are not included in the set)
Operating Environment	0~40°C, 80% RH
Surrounding	No Vibration Source or Corrosive Medium Around
Power Supply	2 x 1.5 AA Battery or 6V DC Power Supply
Dimensions	211 x 80 x 36mm
Weight	390g
