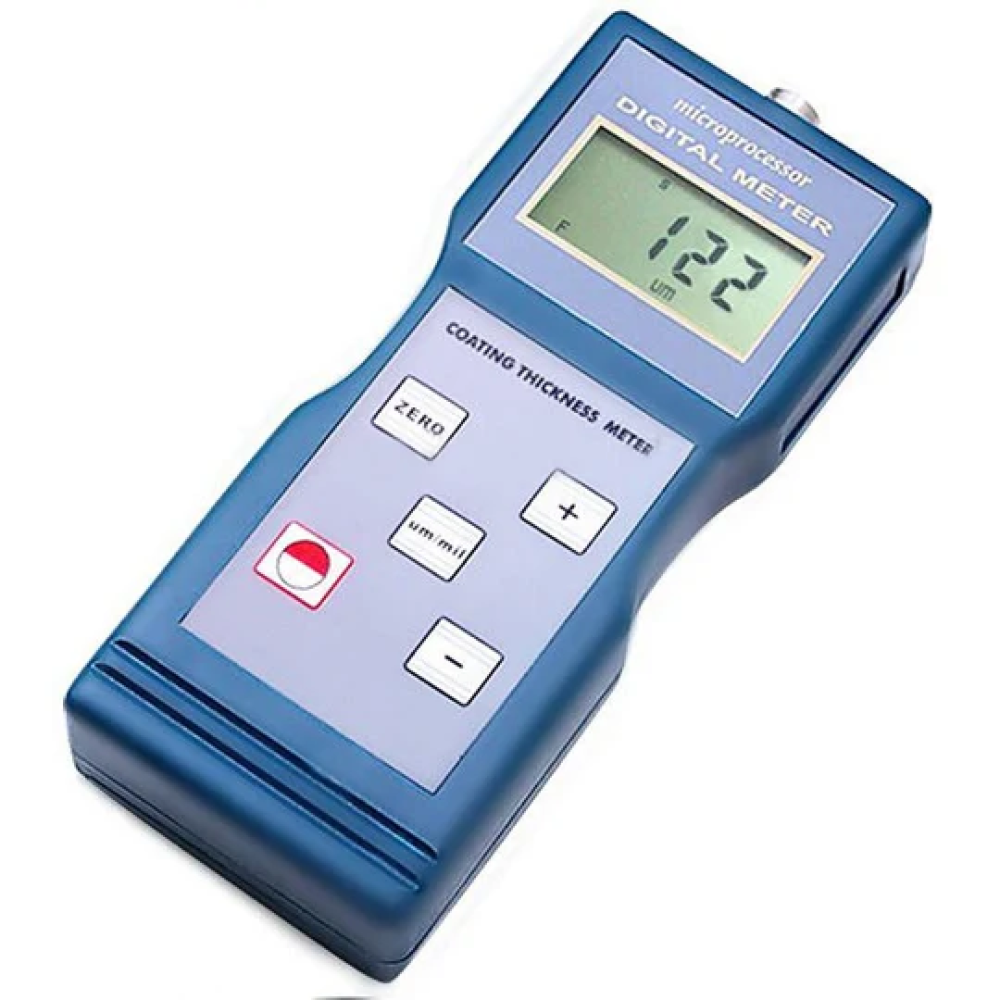

Measuring Instrument - CM-8822 RI.THICKNESS.TM-8822
The new Coating Thickness Meter for automotive and painting applications that require greater precision. A top quality meter that uses magnetic induction and eddy current principle to measure thickness of magnetic and non-magnetic surface and detect the thickness of nonmagnetic coating on a magnetic substrate (ferrous) or an insulating coating on a non-magnetic conductive substrate (non-ferrous). Equipped with NF (NFe) probe used in procedure turbulence current test and F (Fe) that uses magnet inductive. It carries out high-speed and accurate results and covering a range of 0~1000um or 0~40mil.
Features
- Used the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement & fast measuring time. Wide measuring range and high resolution. Digital display gives exact reading with no guessing errors. Shaped to fit comfortably for right or left-handed person.
Specifications
| Measuring range | 0~1000um/0~40mil |
|---|---|
| Operating Principle | magnetic induction & eddy current (F & NF) |
| Resolution | *0.1 um(0~99.9um) , 1um (over 100um) |
| Accuracy | ±1~3%n or 2.5 um (Whichever is the greater) |
| Battery indicator | low battery indicator |
| Readings | Metric/Imperial, mils, and microns |
| Shut down | Automatic or Manual shut down (power off) |
| Display | 4 digits, 10mm LCD |
| Power supply | 4 x 1.5V AA battery (UM3) (not included) |
| Operating temperature | 0-50°C |
| Operating humidity | <80%RH |
| Weight | 500 G |
Applications
Automotive applications. Painting applications. Galvanizing layer. Lacquer layer. Porcelain enamel layer. Phosphide layer. Copper tile. Aluminum tile. Some alloy tile. Paper. Anodizing. Varnish. Paint. Enamel. Plastic coatings. Powder applied to aluminum, brass and non-magnetic stainless steel.
Included Items
- 1 x Coating Thickness Gauge (main unit), 1 x F Probe, 1 x NF Probe, Calibration Foils, Iron Substrate, Aluminum Substrate, 1 x English User's Manual, Carrying Case with maximum shock-absorbent rubber
Models & specifications
Search or filter by pressure range, mounting, and connection, then add the exact model directly to your cart.
| SKU | Price | Stock | Quantity | Purchase action |
|---|---|---|---|---|
RI.THICKNESS.TM-8822
|
2,990.00 | In stock |
|
|
