Brand
ESBTINST
Industrial product family

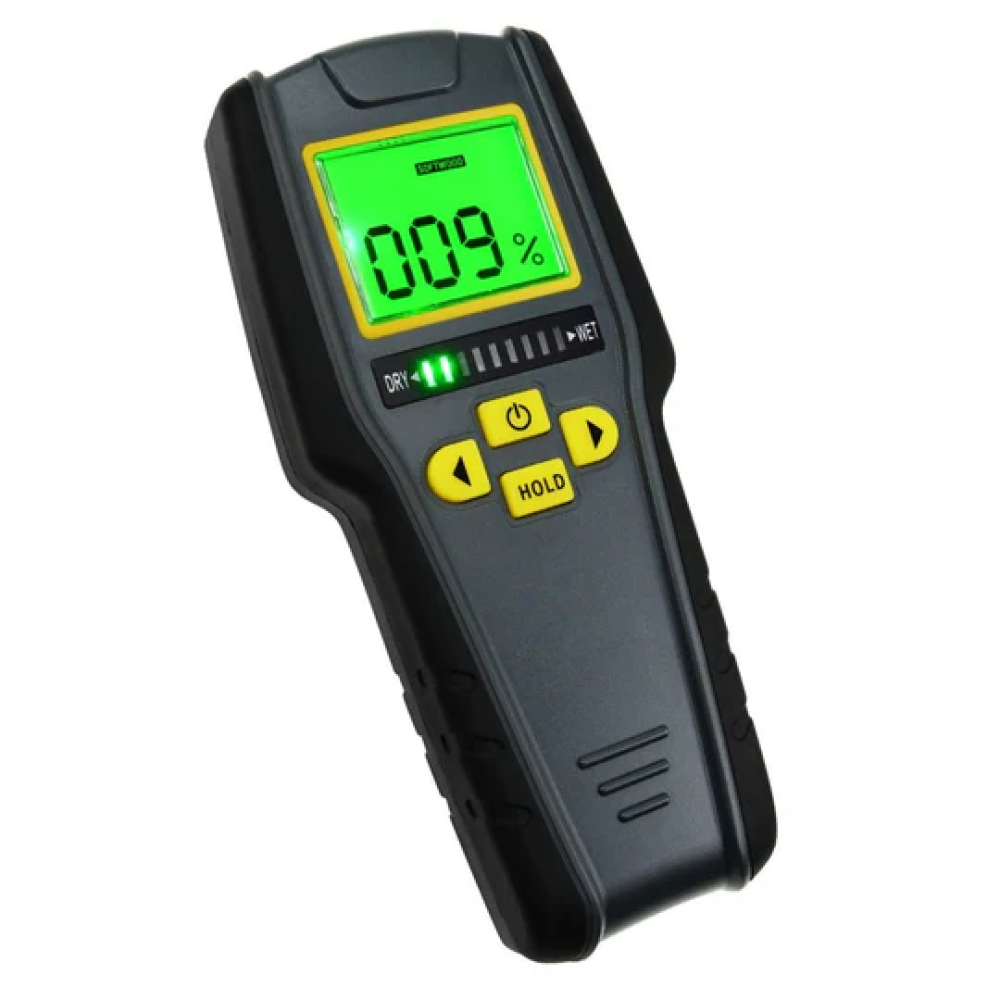

Hygrometer - KC-318 DG.MOISTURE.KC-318
Price
345.00
Need technical guidance?
Send details for model help.
Contact ESBT
Ideal for measuring moisture content without damaging the material that is being tested. It emits and picks up electromagnetic signals through the material to be tested. It measures target object with at least 20mm depth (If not, simply stack a few same objects together to reach the minimum depth). The reading displayed is an average value of the moisture content from the entire surface area and the maximum depth of penetration. It calibrates automatically, therefore manual calibration is no longer necessary.
Features
- Intelligent non-invasive & non-marring design measures moisture without damaging the surface
- Detect Moisture of 4 different types of materials (drywall, masonry, softwood, hardwood)
- Audio Alarm if reading is out of range
- Moisture display on LCD and LED bars indicator
- Tricolor LED bar graph indicator lights to indicate dry, normal and wet moisture level.
- Auto calibration
- Data hold function: Lock readings
- Green backlight
- Low battery indicator
- Auto power off
Specifications
| Type | Non-Invasive Inductive Moisture Meter |
|---|---|
| Measurement Range - Softwood | 0~53% |
| Measurement Range - Hardwood | 0~35% |
| Measurement Range - Drywall and Masonry | relative values |
| Measurement Precision | ±4% (Softwood, Hardwood) |
| Maximum Measuring Depth | 3/4 inch (20mm) |
| LED Moisture Content Indicator - Drywall & Masonry | Green: 0~30%; Yellow: 31~70%; Red: 70%+ |
| LED Moisture Content Indicator - Softwood & Hardwood | Green: 5~14%; Yellow: 15~17%; Red: 17%+ |
| Buzzer Alarm Range - Drywall & Masonry | >70% |
| Buzzer Alarm Range - Softwood & Hardwood | >17% |
| Auto power off | 2 minutes inactive |
| Working Temperature | 0~40°C |
| Storage Temperature | -10~50°C |
| Storage Humidity | 5~95% RH |
| Operation Current | <35mA |
| Power source | 1 x 9V Battery |
| Dimension | 170 x 75 x 30mm |
| Weight | About 150g |
Applications
- wood
- timber industry
- craftsmen
- building material storage
- ceiling leakage detection
- woodworkers
- contractors
- building inspectors
Included Items
- 1 x Digital Non-Invasive Inductive Moisture Meter
- 1 x English User's Manual
- 1 x 9V battery
- Blister packaging
