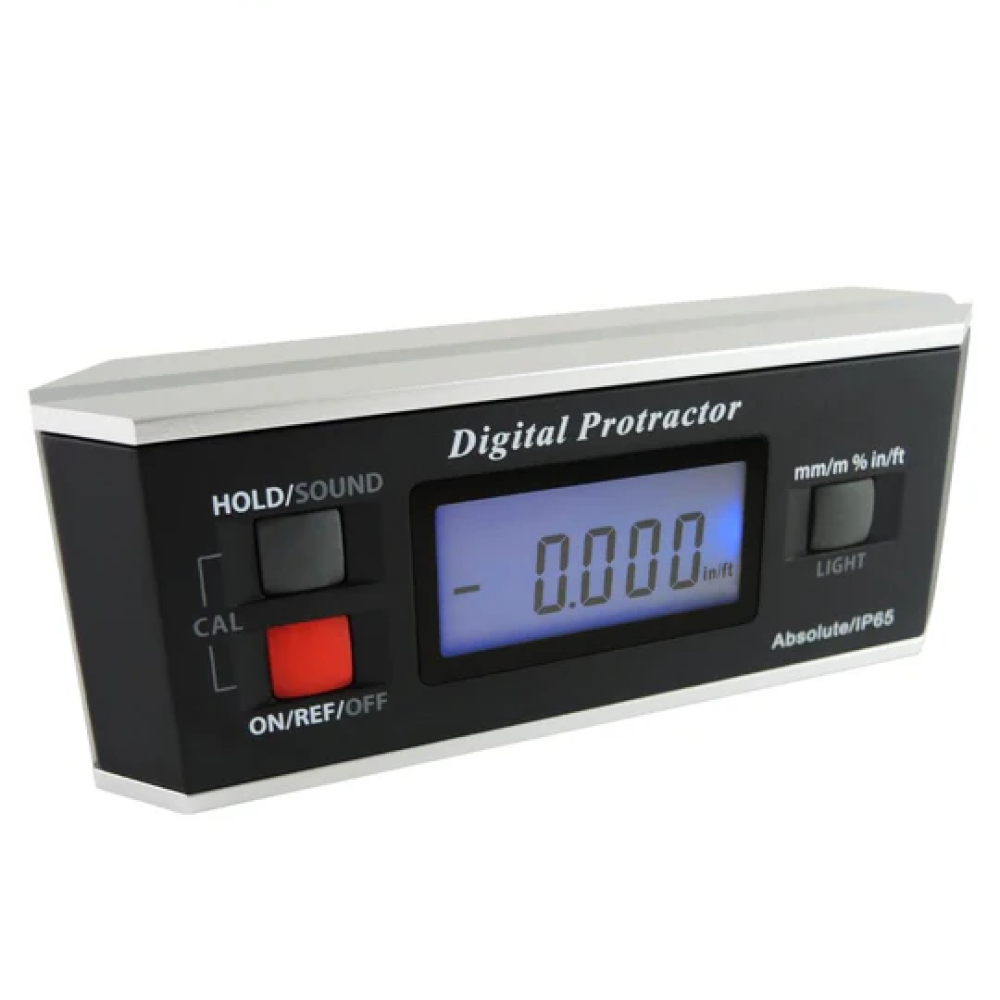

Measuring Instrument - AG-82413B DG.Angle.AG-82413B

Price 368.00

Available to order 1 / 1

Model selection See table below

Need technical guidance? Send details for model help.

This Digital protractor uses angle sensor technology to calculate exact angles simply by tilting it to the desired angle. The LCD provides a reading that is always displayed in an upright position at any angle. It measures angles within a 4 x 90° (0~360°) range. It also has Absolute Angle Measurement to test whether the working surface is on the level to check roof slopes, wheel alignment, etc. With simple self-calibration, no other fixtures are needed.

Features

V-groove base plate with strong built-in magnets
Full range 360° measurement allows you to work both horizontal and vertical planes
Dynamic measuring tool: Angle Finder, Protractor and Level
With Beeper / Sound Function that can be set
Converts angles to different units : degrees (°) to mm/m, to percent slope (%), to pitch (in/ft)
Measuring range of 4 x 90°
Backlight Functions to be able to use it in the dark place
Display remains upright enabling viewing at all angles
Fast and accurate measurement
Factory Calibrated
Compact & portable design
Absolute and relative measurement conversion
Powered by 1.5V or AAA Alkaline battery 2000 hours in continuous use (included in the set)
With CE, RohS, PAHS Marking

Specifications

Measuring Range	4 x 90° , mm/m : 1000mm/m,% : 100%, in/ft : 12in/ft
Accuracy	0° and 90° ≤0.1°, the rest ≤0.2°
Resolution	0.05°
Working Temperature	32 ~ 104°F (0 ~ 40°C)
Working Humidity	≤85%
Protection Grade	IP65
Dimensions	approx. 151 x 60 x 32mm
Weight	approx. 292g
Power Supply	2 x AAA alkaline battery (included on set)

Applications

Automotive
Driveline Measurement
Racecar wing & chassis adjustment
Wheel alignment
Frame straightening
Industrial
Machine tool set up
Lathe and mill alignment
Quality Assurance verification
Medical
Range of motion measurement
Driveshaft alignment
Setup of precision machines
Road or rail-track layout
Satellite or aerial alignment
Drainage angles and run-off slopes
Tool setting on Lathes
Setting blade angle of Circular Saws
Setting blade angle of Miter Saws
Setting work piece angle for milling
Grader and tractor work alignment
Platform monitoring
Suitable for Built wood and metalwork projects
Create straight edges when assembling furniture
Ensure wallpaper and cornices are level for decoration
Measuring and adjusting alignment of sliding carriages and extension tables to cast saw benches
Check drill press table setting, table saw, jointer table, band saw, jointer fence or band saw table
Favored by cabinetmakers & furniture workshops for setting up machinery such as saw benches, planer thicknesses, spindle molders and lathes to ensure that they are set true
