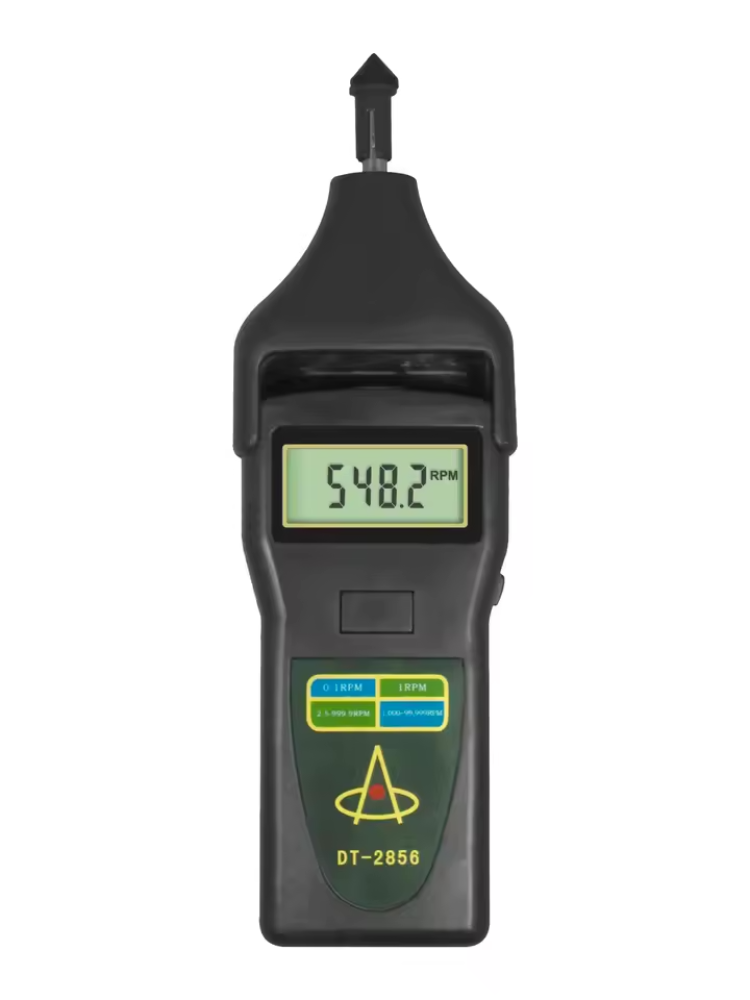

Measuring Instrument - DT-2856 RI.TACOMETER-DT-2856

Price 920.00
Available to order 1 / 1
Model selection See table below
Choose a model
Need technical guidance? Send details for model help.
Contact ESBT

Multifunctional, one instrument combines PHOTO TACH. (RPM) & CONTACT TACH. (RPM). Digital display with no guessing errors. Wide measuring range and high resolution.

Features

  • Multifunctional, one instrument combines PHOTO TACH. (RPM) & CONTACT TACH. (RPM).
  • Digital display with no guessing errors.
  • Wide measuring range and high resolution.
  • The last value/max. value/min. value will be automatically stored in memory.
  • The use of durable, long-lasting components, including a strong, lightweight ABS-plastic housing assures elegant shape and ease of use.

Specifications

Range - Laser 2.5~99,999r/min
Range - Contact 0.5~19,999r/min
Resolution - Tachometer (0.5~999.9 r/min) 0.1 r/min
Resolution - Tachometer (Over 1000 r/min) 1 r/min
Resolution - Surface Speed (0.05~99.9 m/min) 0.01 m/min
Resolution - Surface Speed (Over 100 m/min) 1 m/min
Resolution - Surface Speed (0.1~999.9 ft/min) 0.1 ft/min
Resolution - Surface Speed (Over 1000 ft/min) 1 ft/min
Accuracy ±(0.05%n+1d)
Sampling Time 1.0 s(Over 60 r/min)
Test Range Select Automation
Memory Max / Min / Last Value
Time Base Quartz Crystal
Laser Tach Detecting Distance 50~150mm/2~6inch(Typical),Max300mm/12inch
Power Supply 4 x 1.5V AA Battery
Dimensions 215 x 74 x 32mm
Weight approx. 280gms

Included Items

  • 1 x Tachometer
  • 1 x Cone Adapter
  • 1 x Funnel Adapter
  • 1 x Reflective Tape 350mm
  • 1 x Operation Manual
  • Standard Factory Packaging

Download the product datasheet

Fast, precise selection

Models & specifications

Search or filter by pressure range, mounting, and connection, then add the exact model directly to your cart.

1 models shown
SKU Price Stock Quantity
RI.TACOMETER-DT-2856 920.00 In stock
