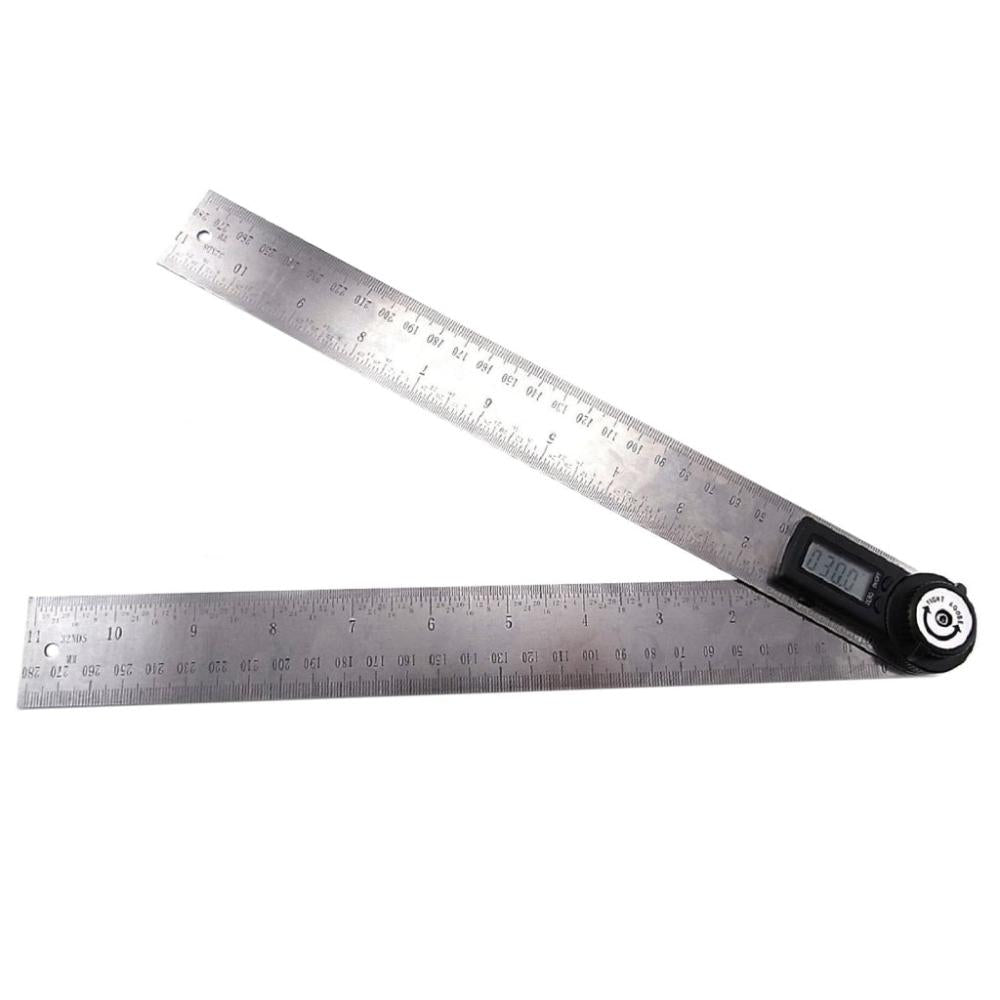

Measuring Instrument - AG-300D DG.Angle.finder600mm

Price 517.50

Available to order 1 / 1

Model selection See table below

Need technical guidance? Send details for model help.

2-in-1 precision ruler & digital angle finder with moving blade can calculate internal and external angles and measures length quickly and accurately (metric and imperial scale). Well used into various fields Angle Ruler, Straight Ruler and Square Ruler. Plus it has stable locking function that lock measurement at any angle.

Features

Quick 360° Digital Angle Gauge
Easy to measure all kinds of angle and draw lines
Ruler made of stainless steel for durability and rust protection for years of use
Up to 600mm (60 centimeters) ruler measurement range
Digital display measures 1" wide by 1/2" high
Scaled at 1/32" imperial intervals on one side and 1mm metric on the other
High resolution of 0.1° and easily transfer miter angles with no calculations
Zero Setting function
Automatically shut off function in 6 min
Long Battery Life (more than 5000 hours in continuous use)
Stable locking function, lock measurement at any angle
Clear display with compact design

Specifications

Standard	CE, RoHS, PAHs
Measuring Range	0~999.9° (More than 999.9° incorrect display)
Accuracy	±0.3°
Resolution	0.1°
Ruler measurement range	300mm each arm/blade
Working Temperature	0~50°C (32~122°F)
Working Humidity	≤85% RH
Working Current	≤ 50µA (More than 5000 hours in continuous use)
Item Dimension	600 x 35 x 20mm
Weight	approx. 226g
