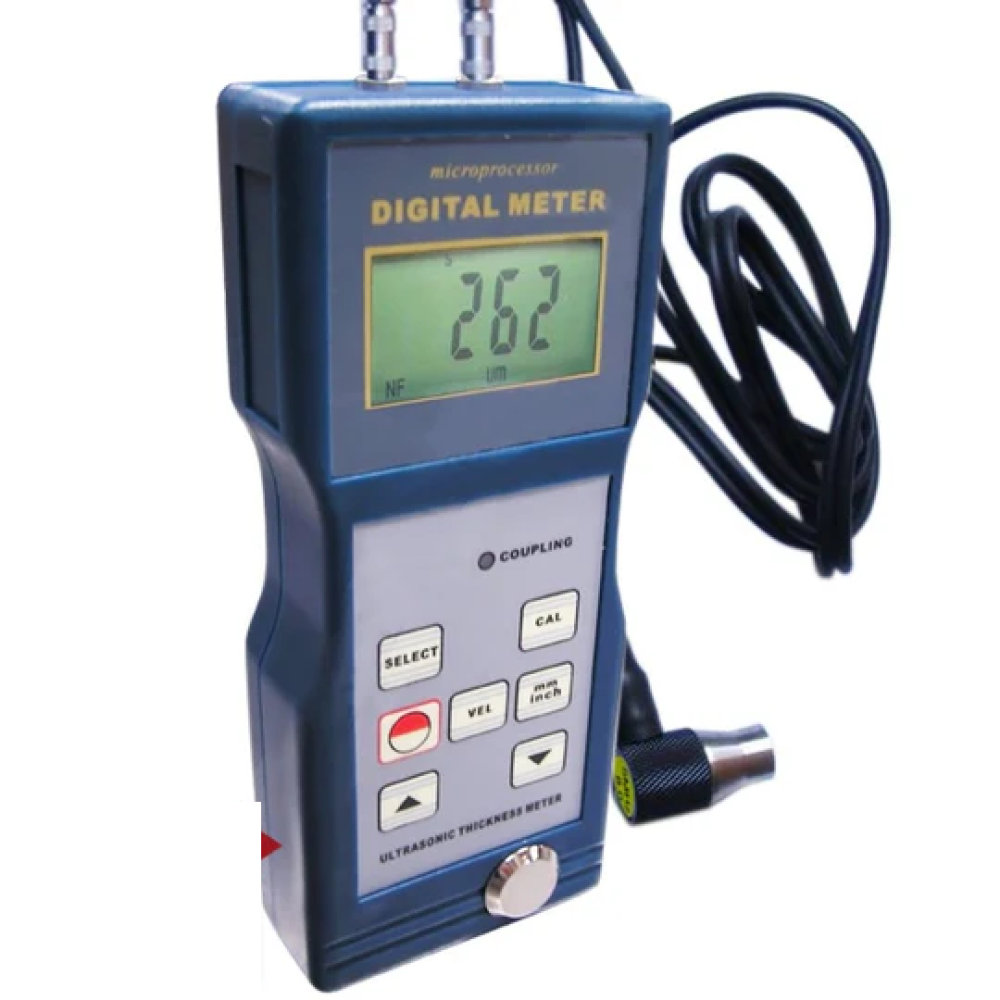

Thickness Gauge - TM-8811 RI.THICKNESS.TM-8811

Price 2,990.00

Available to order 1 / 1

Model selection See table below

Need technical guidance? Send details for model help.

Fully equipped to measure thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, and even in the industries of petroleum, shipbuilding, power station and machine manufacturing. It can measure any hard materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron and other materials.

Features

Uses Microcomputer LSI circuit and crystal time base to offer high accuracy measurement & fast measuring time
With wide measuring range of 1.5mm ~ 200mm, high resolution with Low Battery Indicator
Has CE marking, conforms with the essential health and safety requirements set out by the European Directives
With high power emission and broad band of receiving sensitivity, the gauge can match probes of different frequencies. It is widely used in almost all types of industries to measure rough surfaces and even cast iron with ease
Capable to give measurements of many of materials including Steel, Cast iron, Aluminum, Red copper, Brass, Zinc, Quartz glass, Polyethylene, PVC, Gray cast iron, Nodular cast iron
Automatically switch off after about 2 minutes from the last key operation
Features instant results that's clearly & legibly shown on an easy-to-read LCD screen and gives exact reading with no guessing or errors
With FREE Protective & sturdy carrying case with contoured rubber compartments that fits the device perfectly
Approved by strict quality and safety standards
Made from quality materials

Specifications

Operating principle	ULTRASONIC
Measuring range	1.5~200mm, 0.06-8inch (45# steel)
Resolution	MPE +(0.1+H/100)mm
Accuracy	± (0.5%n+0.2)
Sound velocity	1000 - 9000 m/s
Operating Temperature	0°C-40°C (32°F-104°F)
Operating Humidity	<85% RH
Display	4 digits, 10mm LCD
Power supply	4 x 1.5V AA battery (not Included)
Size	160 x 68 x 32mm (6.3 x 2.68 x 1.26in)
Weight	About 208g
